Cable Eye Ends

Tyler Madison offers over 30 standard end termination configurations and cable eyes for a variety of applications. Custom fabricated stamped eyes are also available to meet your unique needs. Wire rope stake eyes can be bent to any specified angle.

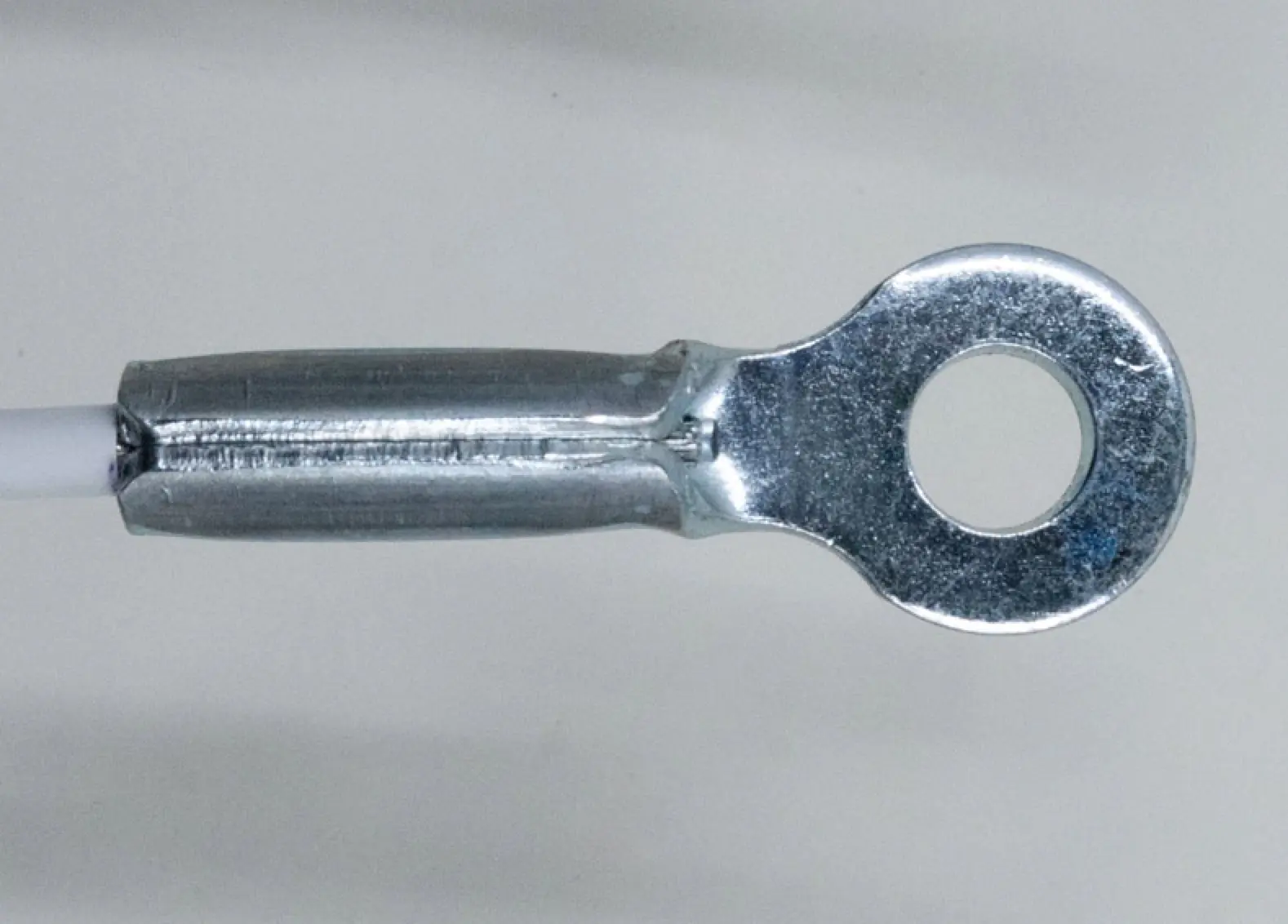

Stamped eye end fitting on grey background, side view.

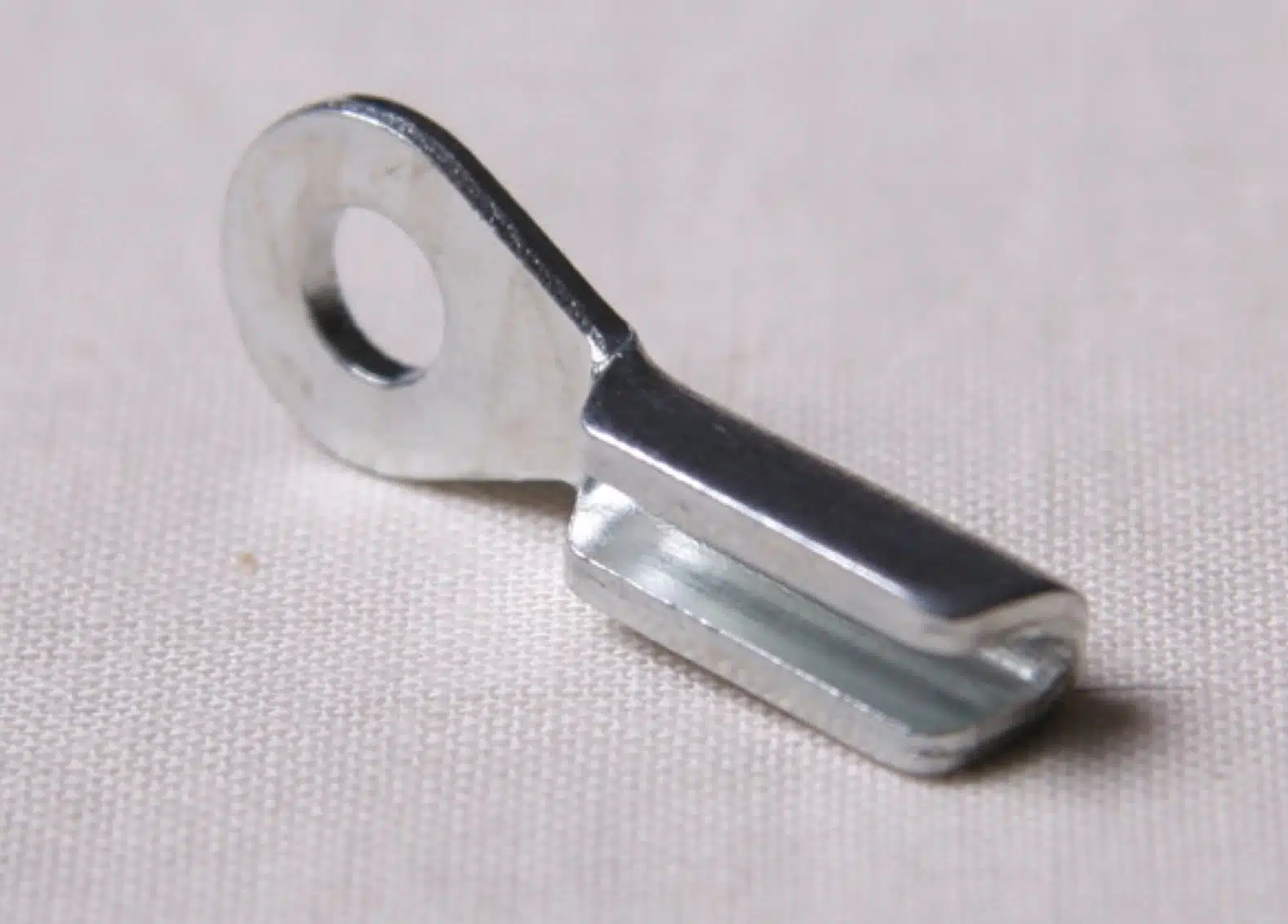

Stamped eye end fitting on grey background, angle view.

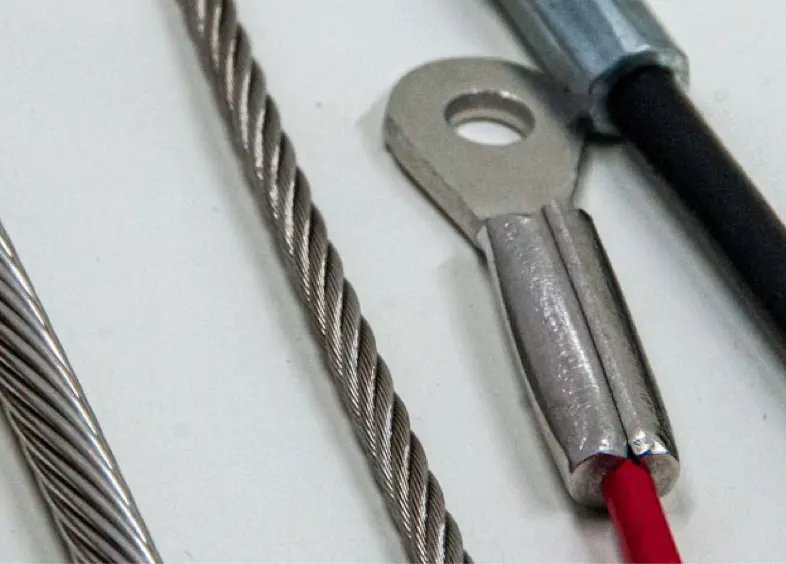

Group of cables with stamped eye end fitting.

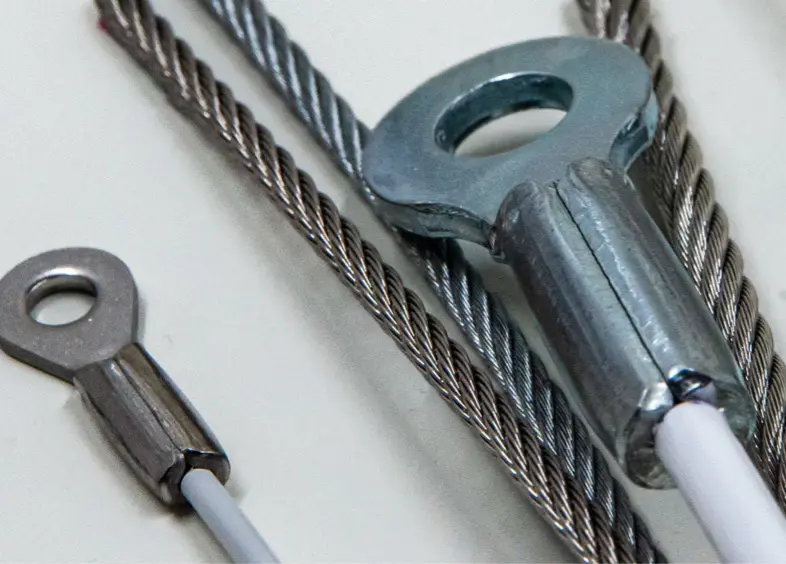

Group of cables with cable eye ends.

Custom Assembly - Stamped eye - Threaded Bolt

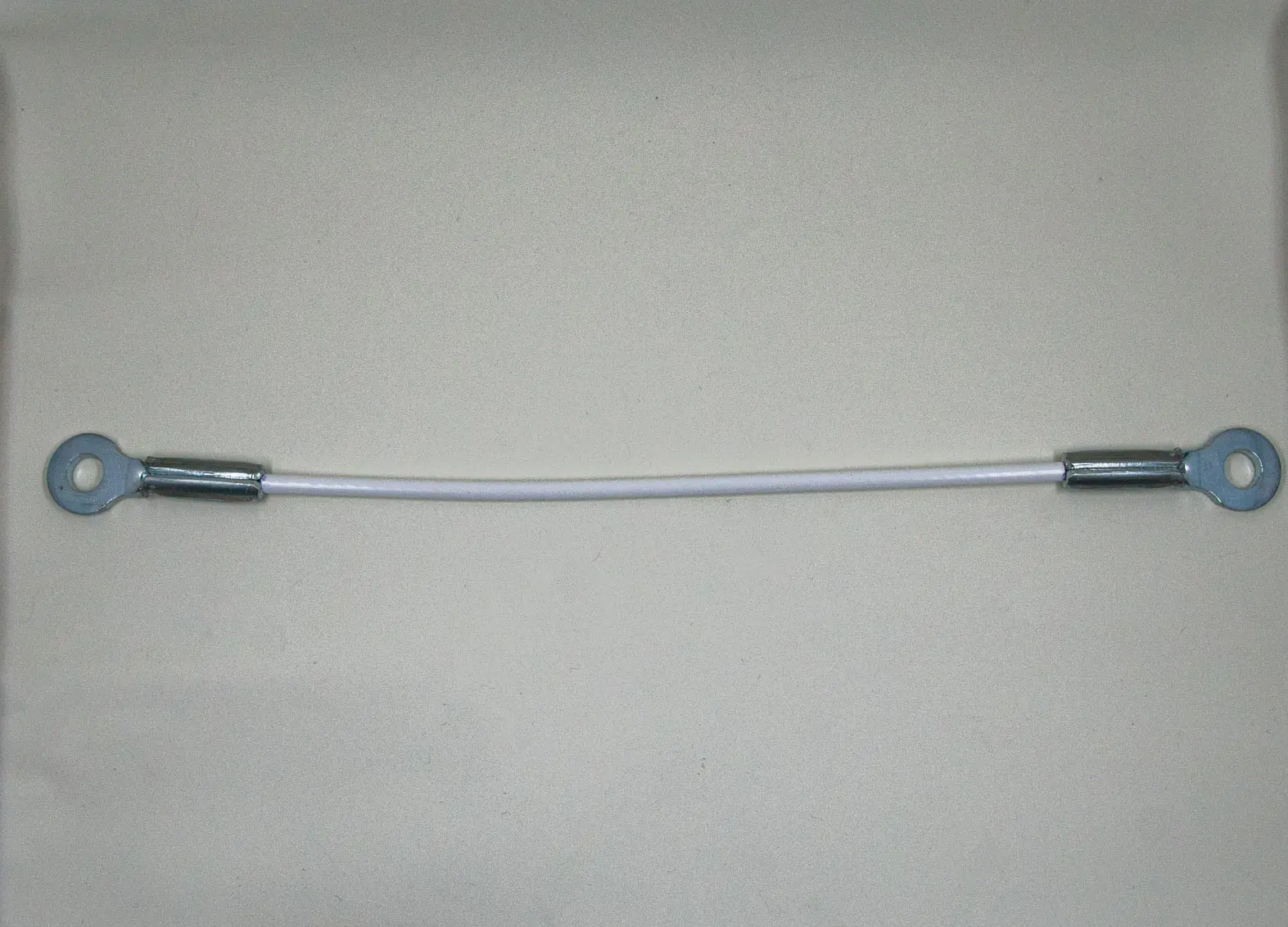

Custom Assembly - Crimped stamped eye on coated cable

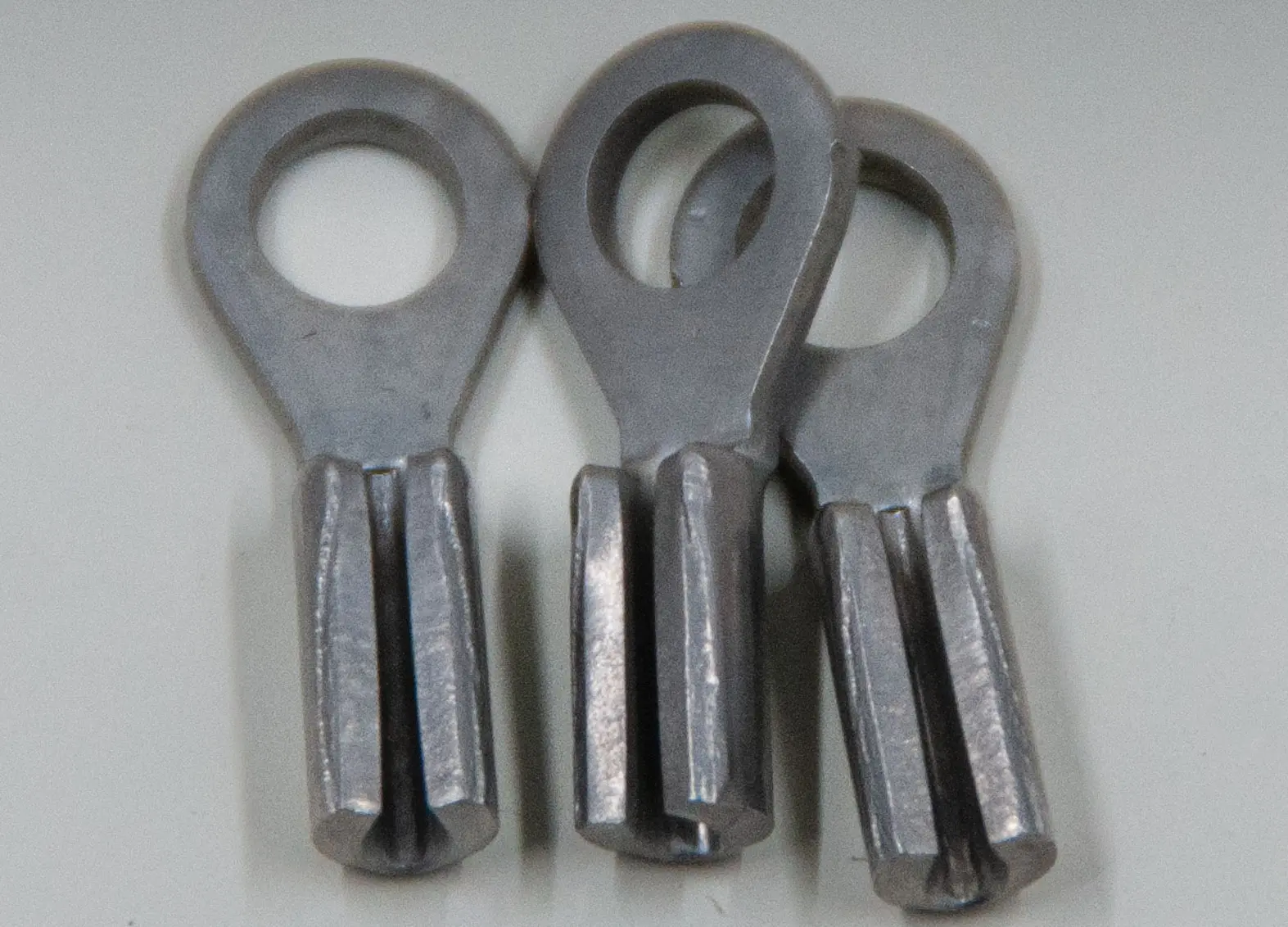

Multiple Stamped eye end fittings

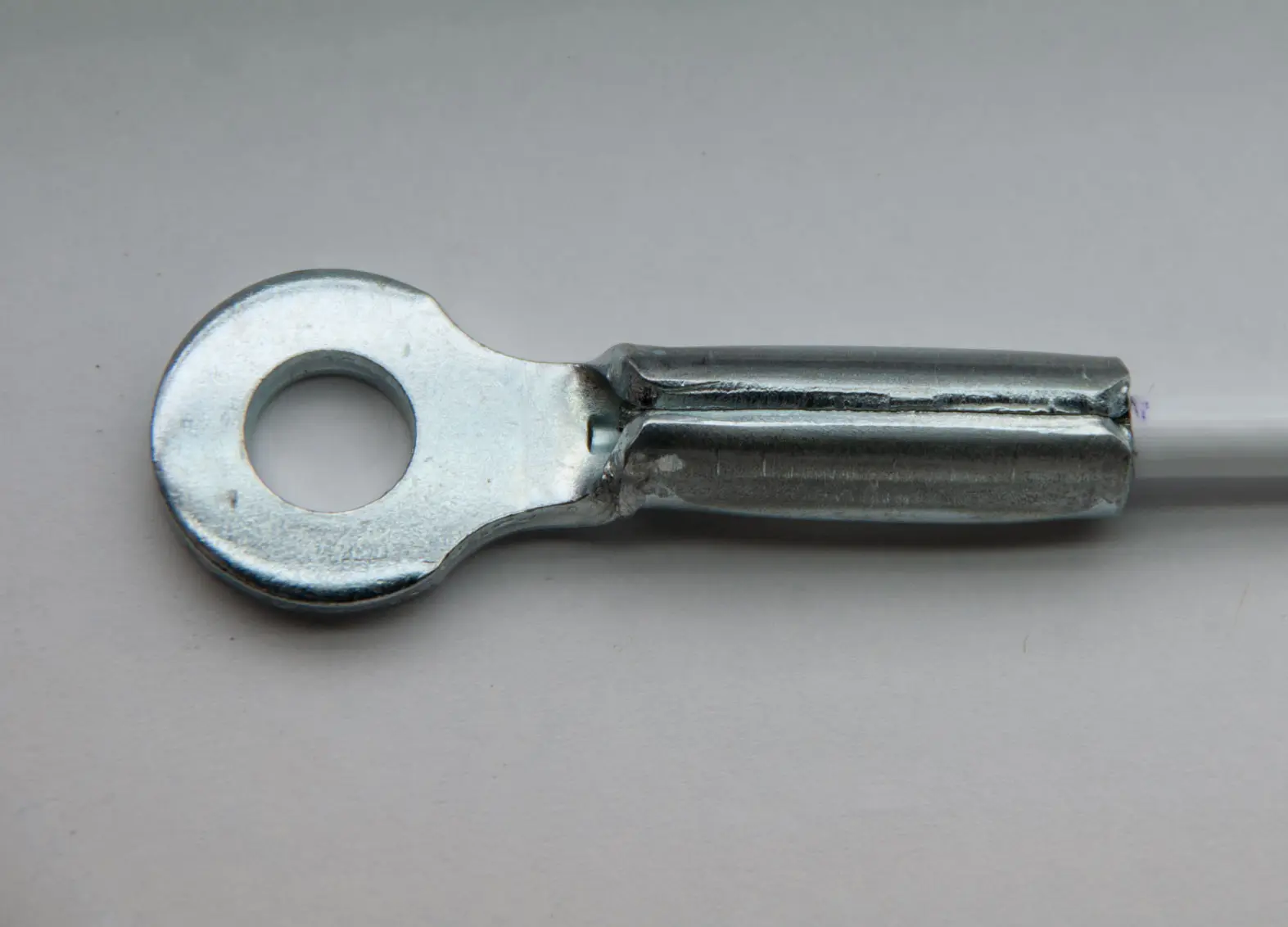

Crimped Stamped eye coated cable on white background

The chart below will help you determine which part number is best suited for your application.

Diagram of stamped eye

Standard Stamped Eye End Fittings

Part #MetalBare Cable Diameter A*Dimension B (in)Dimension C (in)Dimension D (in)Dimension E (in)Dimension F (in)Dimension G (in)
301-000Z.P.3/64″0.1600.3200.0600.7150.4000.315
301-000.5Z.P.3/64″0.1900.3200.0600.7150.4000.315
Z.P.1/16″0.1290.3800.0350.6500.3100.340
301-001.2Z.P.1/16″0.1940.3800.0350.6500.3100.340
301-001Z.P.1/16″0.1290.4600.0600.9780.5800.400
301-002Z.P.1/16″0.1900.4300.0600.9400.6200.320
301-003Z.P.1/16″0.2040.4600.0600.9780.5800.400
301-005Z.P.1/16″0.2600.4300.0600.9400.6200.320
301-006Z.P.3/32″0.2050.5000.0931.4200.9500.470
301-007Z.P.3/32″0.2500.5000.0931.4200.9500.470
301-008Z.P.3/32″0.3750.7500.0931.3100.9600.450
301-007.3Z.P.3/32″0.3200.7500.0931.3100.9600.450
301-009Z.P.1/8″0.2500.5800.1251.9501.4700.480
301-010Z.P.1/8″0.3160.5800.1251.9501.4700.480
301-011Z.P.1/8″0.3750.8500.1251.8401.3000.540
301-012Z.P.1/8″0.5000.8500.1251.8401.3000.540
333-001.2S.S.3/64″0.1600.3200.0600.7150.4000.315
333-002S.S.3/64″0.1900.3200.0600.7150.4000.315
333-003S.S.1/16″0.1940.3800.0350.6500.3100.340
333-004S.S.1/16″0.1290.3800.0350.6500.3100.340
333-004.5S.S.1/16″0.1290.4600.0600.9780.5800.400
333-005S.S.1/16″0.1900.4300.0600.9400.6200.320
333-006S.S.1/16″0.2600.4300.0600.9400.6200.320
333-0075S.S.3/32″0.2050.5000.0931.4200.0950.470
333-0077S.S.3/32″0.2500.5000.0931.4200.0950.470
333-007.8S.S.1/8″0.5000.8500.1251.8401.3000.540
333-008.2S.S.3/32″0.3750.7500.0931.3100.9600.450
333-008.3S.S.1/8″0.3750.8500.1251.8401.3000.540
333-008.5S.S.1/8″0.2500.5800.1251.9501.4700.480
S.S.1/8″0.3160.5800.1251.9501.4700.480
*Bare Cable Diameter: The diameter of a bare cable is the outside measurement of the cable’s insulation.
S.S. = Stainless Steel
Z.P. = Zinc Plated Steel
Need help? Call Us at 1-888-638-3604
Request a Quote

Stamped Eye Fittings

Stamped eyelets aka stake eyes come highly recommended by Tyler Madison. Stamped fittings are highly versatile in function, and our customers use stake eye fittings for many different purposes.

Producing millions of these cables since 1995 has allowed us to develop unique processes to help boost efficiency and drive down cost.

Stainless steel cable eyelets are a great option to explore for a custom cable the next time you are connecting, hanging, lifting, reeling, tensioning, or securing something in the field or at the shop.

View Our Services

Flexible & Innovative Solutions

No matter what the application or issue, we are here to help you solve it!

Quality

Tailored cable assemblies and controls designed to meet specific needs and applications.

Competitive Pricing

Consistently reliable product at a cost-effective price.

Fast & Reliable

High standards of craftsmanship ensuring durable and dependable products.

Back to Parts

Request a Quote

Submit your info and basic project details and our qualified staff will contact you promptly to discuss your inquiry.

  1. Contact us by filling out the form
  2. We will be in touch to review & confirm
  3. Receive order
Get Started

Contact Us

Ready to take the next step? Contact Tyler Madison for expert advice and custom cable solutions. Our team is eager to assist with any questions and to help you achieve your project goals with precision and care. Let’s work together to create something exceptional.

Prefer to speak directly? Give us a call, and our team will be happy to assist you right away.

(888) 638-3604

Contact us
Back to Parts

Cable Eye Ends

Stamped eye end fitting on white background.

Stainless steel cable eyelets are highly versatile in function and can be used in a variety of common applications. We offer over 30 standard end termination configurations and cable eyes that are available in stainless steel or steel plated zinc. We can also fabricate custom designed stamped eyes to meet your unique needs. Wire rope stake eyes can also be bent to any required angle.

The chart below will help you determine which part number is best suited for your application.

Zinc Plated Stamped Eye End Fittings

Part #ConstructionBare Cable Diameter – A *Dimension BDimension CDimension DDimension EDimension FDimension G
301-000Zinc Plated3/64 in0.160in0.320 in0.060 in0.715 in0.400 in0.315 in
301-000.5Zinc Plated3/64 in0.190 in0.320 in0.060 in0.715 in0.400 in0.315 in
Zinc Plated1/16 in0.129 in0.380 in0.035 in0.650 in0.310 in0.340 in
301-001.2Zinc Plated1/16 in0.194 in0.380 in0.035 in0.650 in0.310 in0.340 in
301-001Zinc Plated1/16 in0.129 in0.460 in0.060 in0.978 in0.580 in0.400 in
*Bare Cable Diameter: The diameter of a bare cable is the outside measurement of the cable’s insulation.
