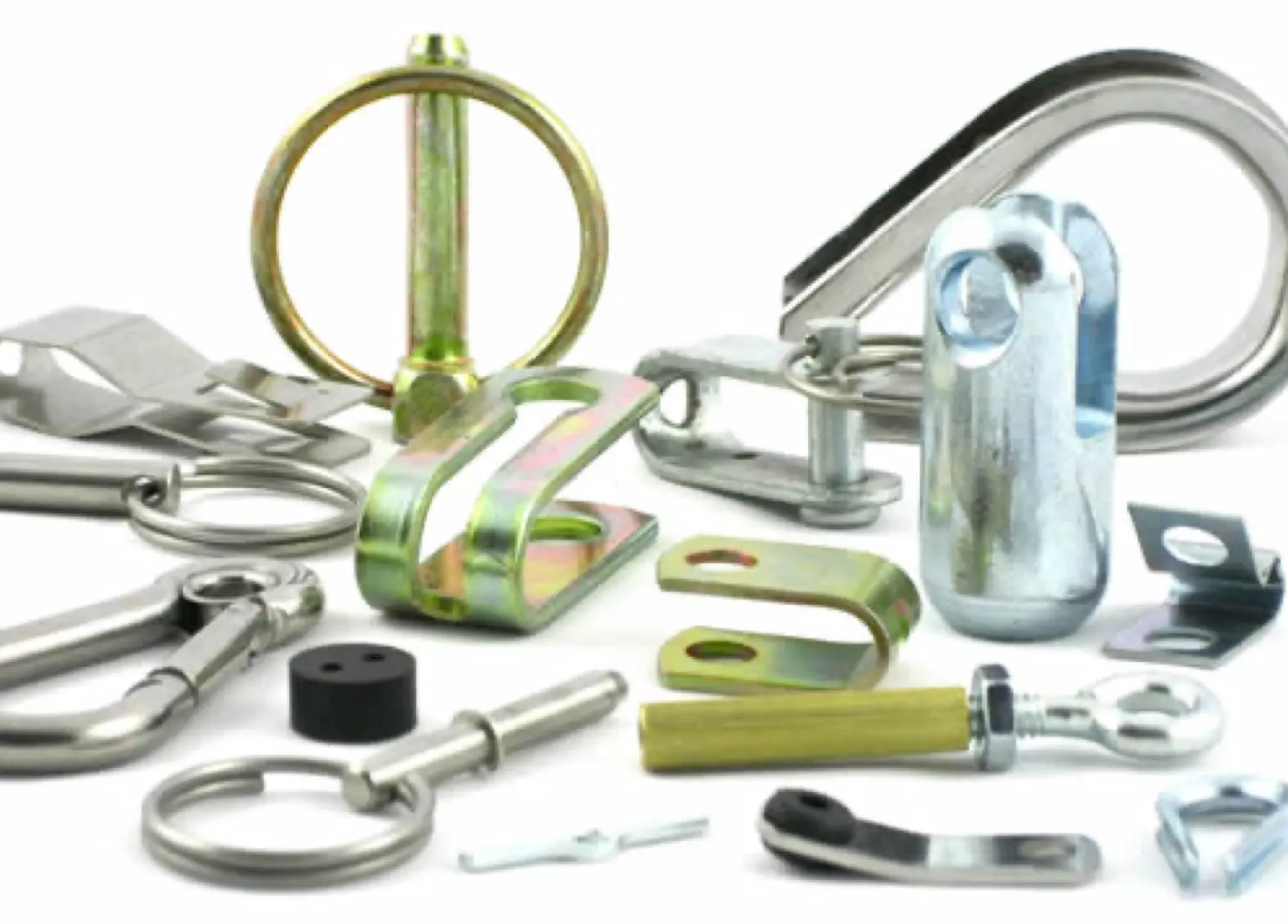

Wire Rope and Cable Hardware in an Assembly
In a typical assembly, wire rope hardware is the interface between the cable and the structure. Hardware clamps, thimbles, snap hooks, hooks, pins and turnbuckles control how load flows through or connects to the system and how you set and maintain tension. We select steel cable hardware that matches the cable diameter, construction, material, and environment so the assembly carries load the way it was designed.

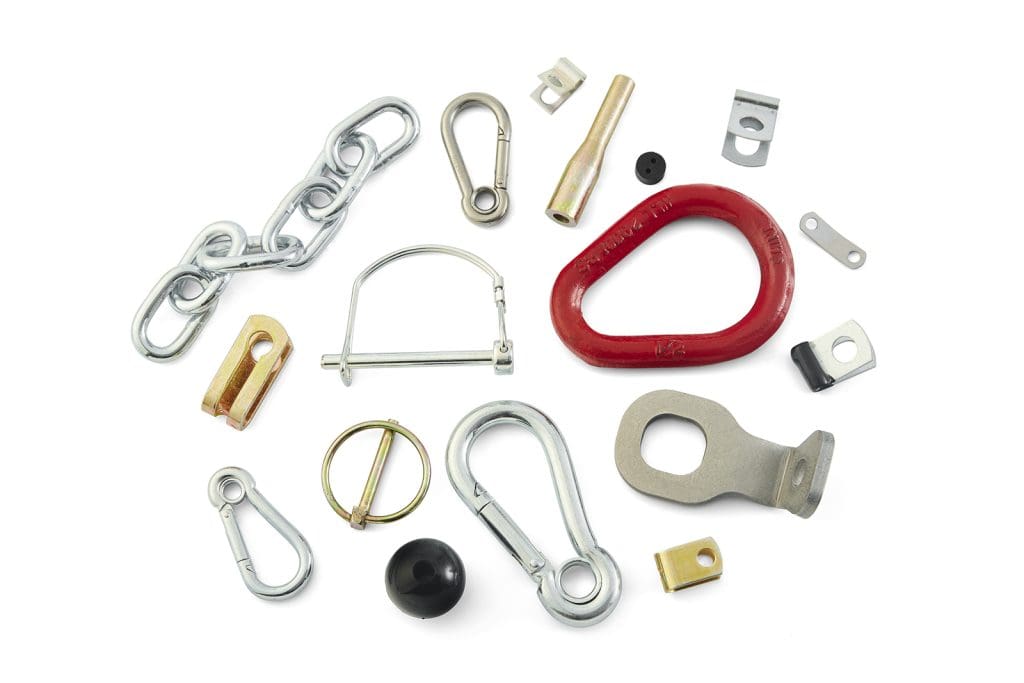

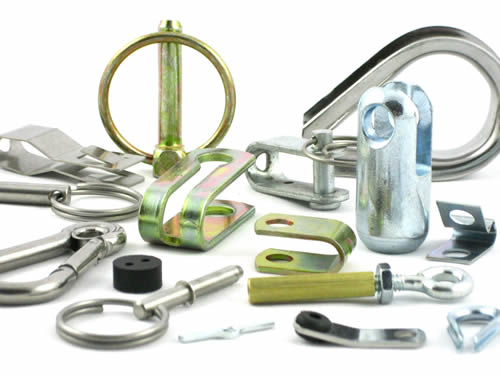

Common hardware families used in our cable assemblies include:
- Wire rope clamps for temporary or adjustable loops

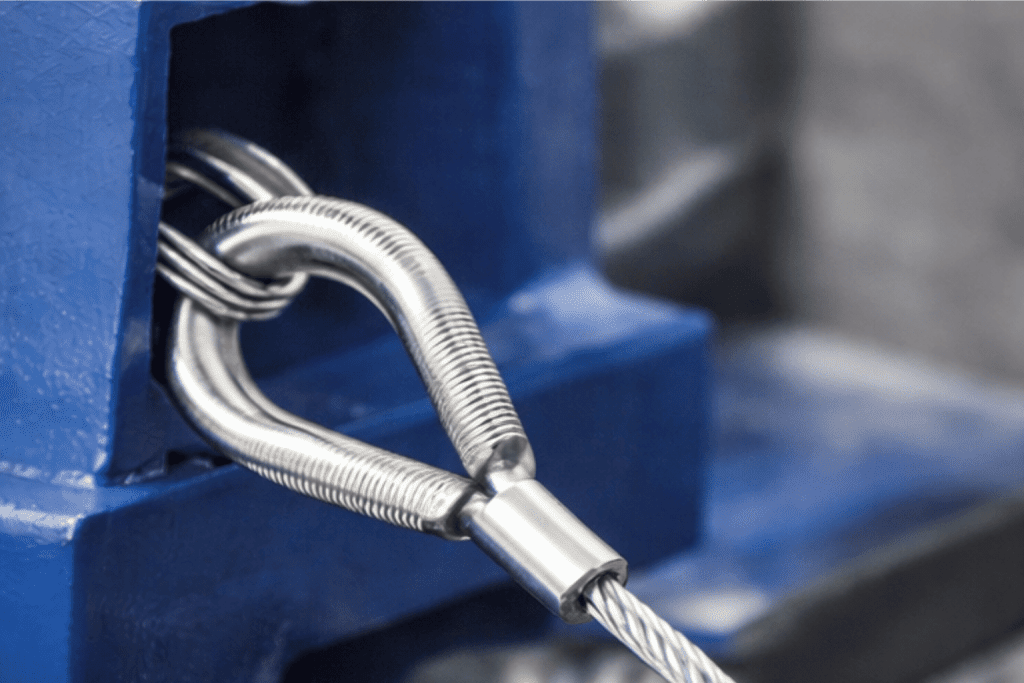

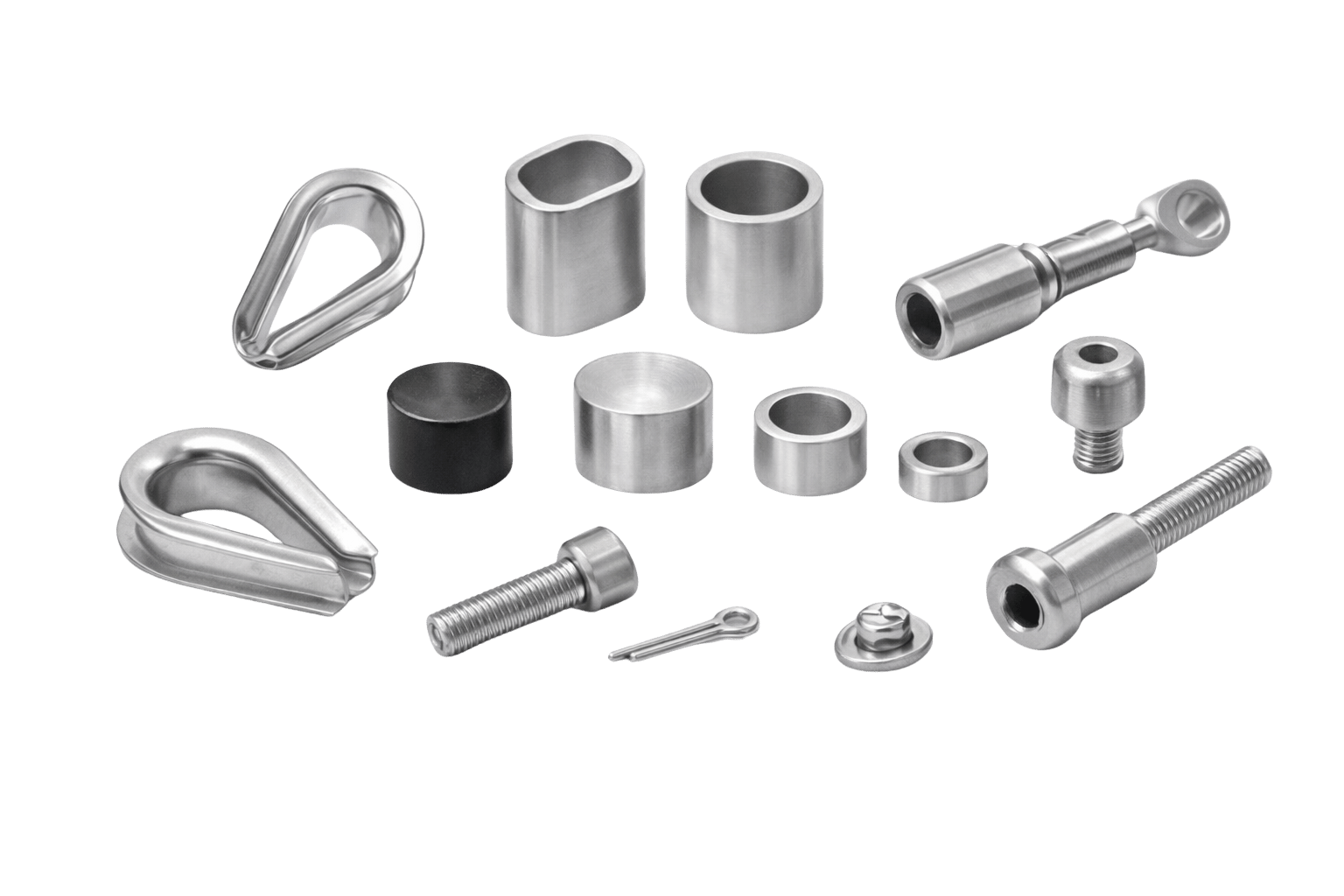

- Thimbles to protect loops from wear and deformation
- Turnbuckles and tensioners to set and adjust cable tension
- Attachment hardware such as eye bolts, tabs, snap hooks, and brackets
Our engineering team treats hardware as another design variable, not an afterthought. That is why we talk about wire rope hardware in the same way we talk about cable size, coating, and end fittings.
Choosing Cable Fittings Hardware for Your Design
Tyler Madison engineers and builds custom cable assemblies that use a wide range of wire rope hardware and cable fittings hardware. We do not sell hardware as a standalone catalog product. Instead, our engineers specify and source cable hardware as part of a complete assembly design so the wire rope, aircraft cable, hardware, and end fittings work together as a system.
The right cable fittings hardware depends on how the assembly is loaded, installed, and adjusted during service. Following are some key considerations:
Load and safety factor
For permanent or critical loads, we usually rely on swaged terminations or engineered end fittings, with hardware used for adjustment or support. Clamps and similar wire hardware are better suited to lighter or temporary loads where inspection and retightening are possible.
Installation method
Hardware-only terminations can be installed in the field with basic tools. Swaged fittings require proper equipment but provide higher strength and a cleaner profile. Many assemblies use a mix of both – engineered fittings at one end and adjustable cable hardware at the other.
Adjustability requirements

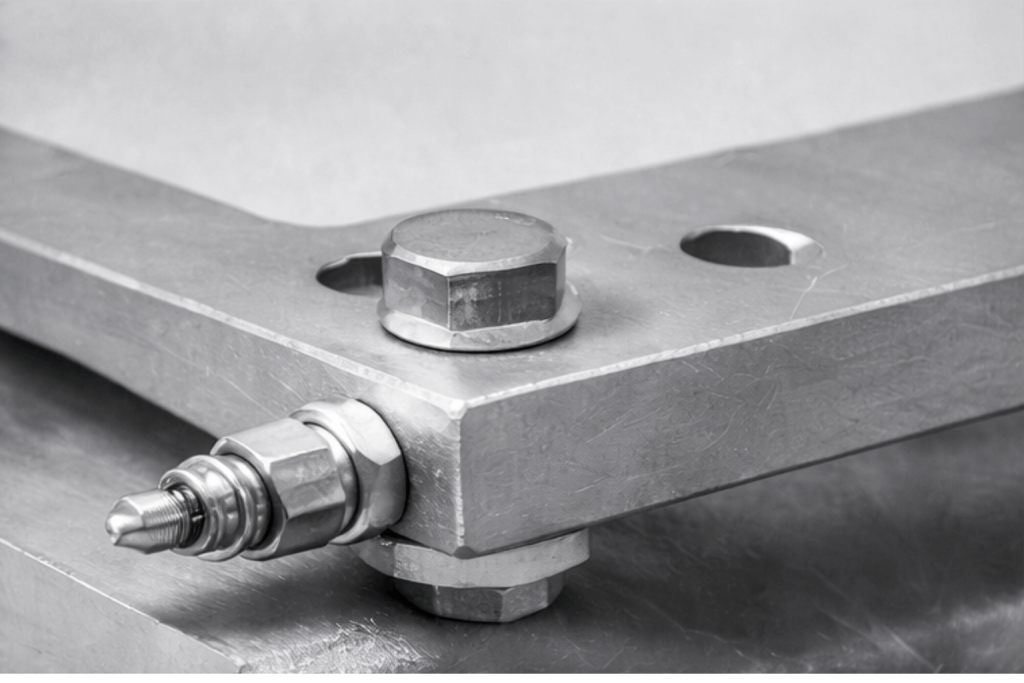

If you need to fine tune tension over time, turnbuckles, threaded studs, and tensioners give you a way to adjust the system without replacing cables.
Environment and material
For marine or outdoor applications we generally recommend stainless wire rope hardware and stainless cable, while plated or coated steel cable hardware can be appropriate for indoor and general purpose use.
When we design a custom assembly, we review these factors with you and specify wire rope hardware that fits your application, safety factor, and installation method.
Hardware Inside Real Cable Assemblies

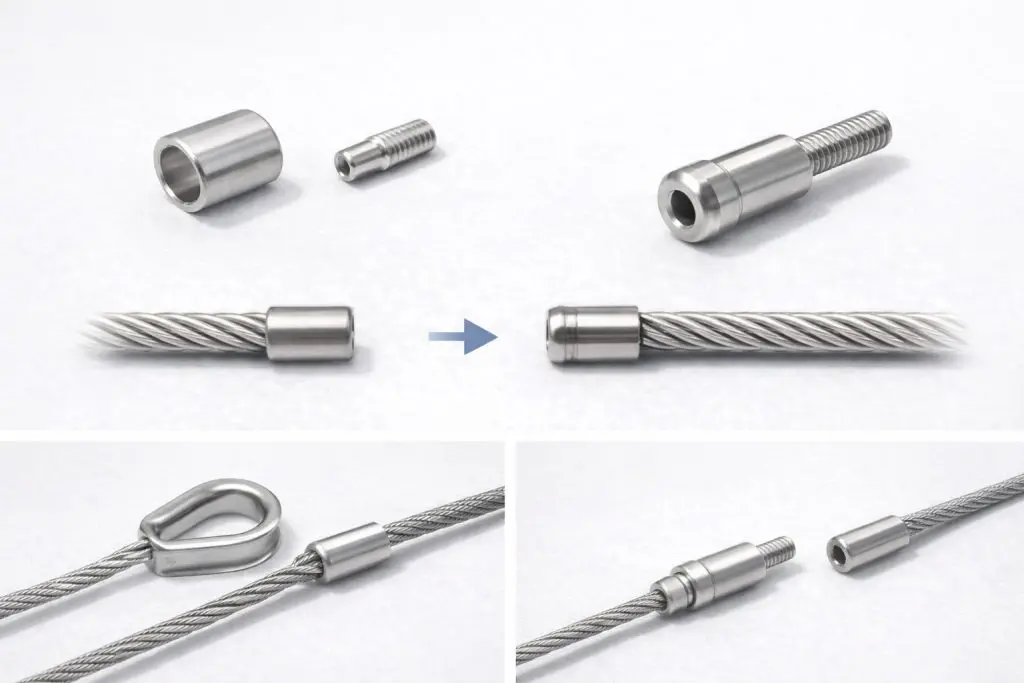

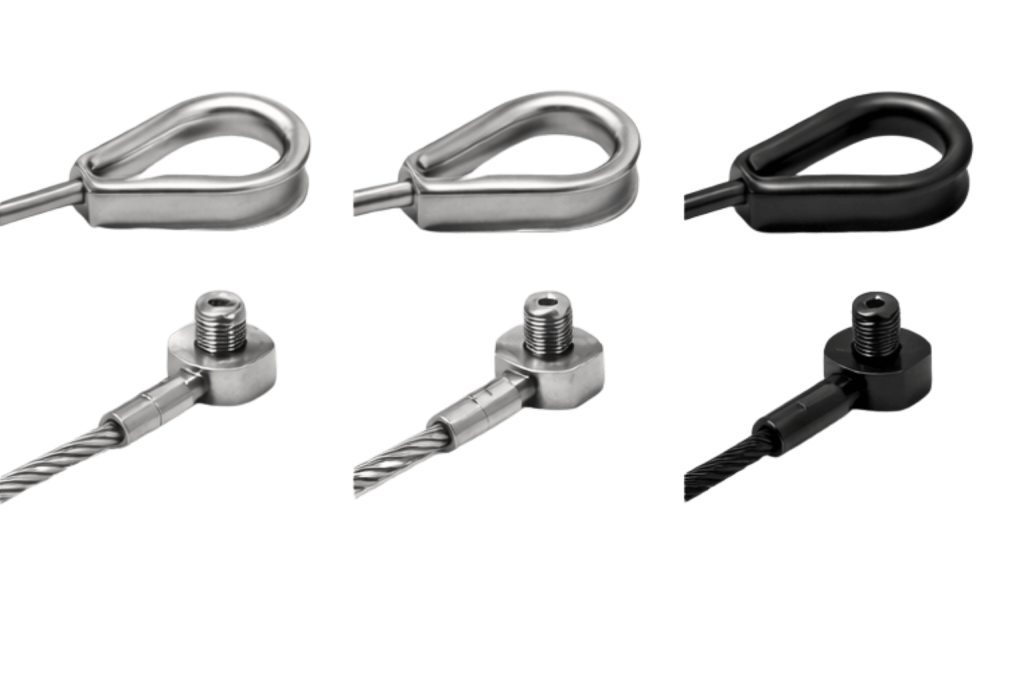

The easiest way to see how cable hardware works is to look at finished assemblies. In many of our wire rope assemblies, end fittings like strap forks, marine eyes, and threaded studs are integrated directly onto the cable. In other cases, wire rope assemblies with terminations such as loops are installed with aircraft cable hardware such as brackets and tabs at the machine.
Photographing and documenting hardware in context also helps engineers and technicians understand how to measure, specify, and replace assemblies in the field.
Engineering Support for Wire Rope Hardware
Tyler Madison has more than 20 years of experience designing and building custom wire rope assemblies. Our process includes:
- Reviewing the load path and safety factor for the assembly
- Matching wire rope hardware to cable size, material, and coating
- Using up to 120 tons of hydraulic swaging force to attach end fittings
- Pull testing assemblies and verifying that hardware and fittings hold to rated strength
We treat hardware specification as an engineering task. When you send a print, sample, or concept, we identify the cable hardware needed to achieve the function and document it on your assembly drawing.
Customer Results and Reviews
OEMs rely on Tyler Madison assemblies when hardware selection is critical to safety and uptime. Many of our long term customers value:
Consistent Performance
Consistent performance from assembly to assembly
Engineering Expertise
Direct access to engineers who understand cable and hardware interaction
Rapid Support
Fast response when they need design changes or replacement assemblies
