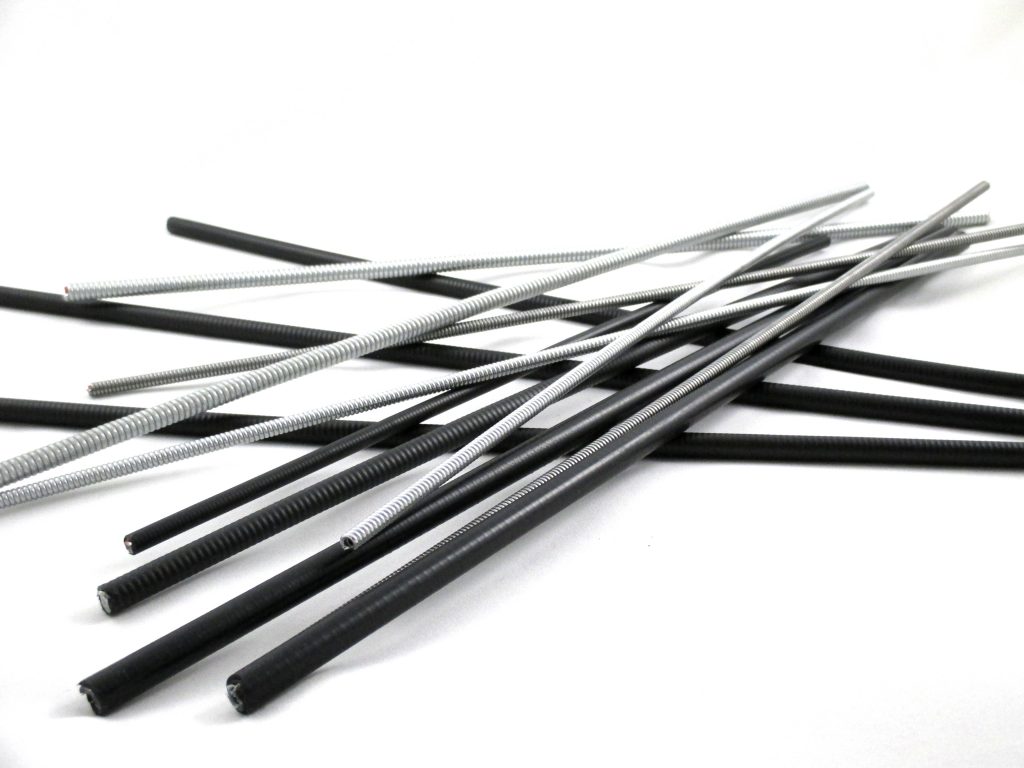

A variety of quality conduit cable and sheathing are available from Tyler Madison, Inc. All custom conduit and sheathing are made from galvanized music wire with or without covering and made from a variety of materials. Other sizes and steel cable conduit fittings have longer lead times depending upon size and quantity.

conduit

conduit

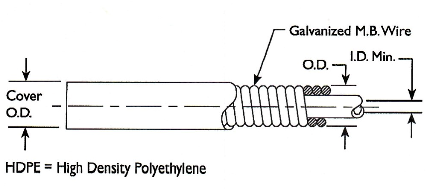

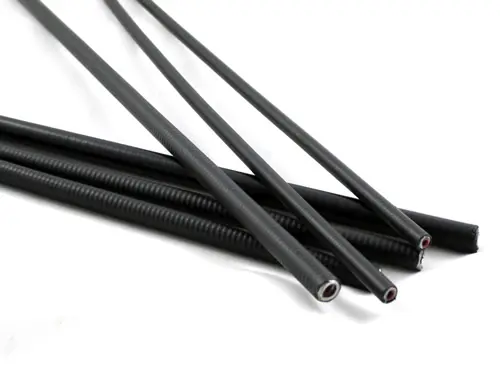

Lined Bowden Style Conduit

Part # Conduit Size OD min ID OD with Cover Notes
5/32 0.156 0.064 0.188
401-001 3/16 0.190 0.080 0.220

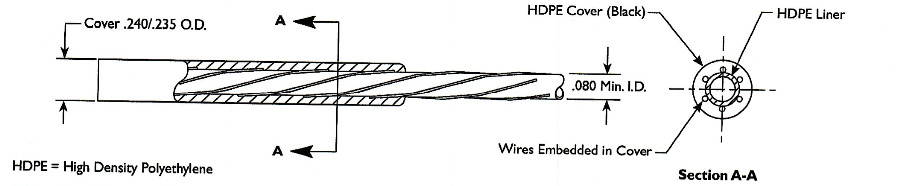

401-001.45 3/16 N/A 0.080 0.185 Longitudinally braided wire, polypropylene coat
7/32 0.218 0.093 0.248
1/4 0.247 0.100 0.278
401-002 9/32 0.280 0.120 0.310
401-002.8 9/32 0.270 0.130 0.350 Heavy duty Flat wire wrap
5/16 0.310 0.158 0.337

* Conduit above available with Teflon, nylon or high density polyethylene liners. Outer cover materials include PVC, nylon and hight density polyethylene.

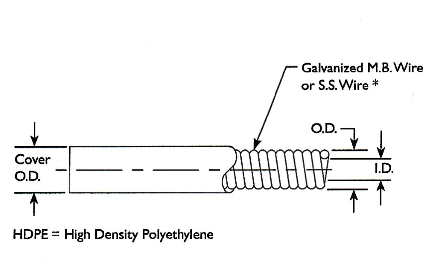

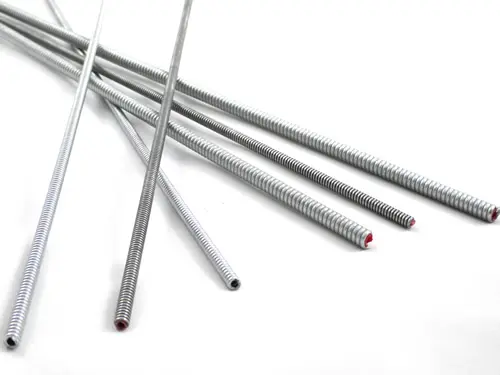

Unlined Bowden Style Conduit

Part # Conduit Size OD min ID OD with Cover Notes
444-002.3 3/16 0.195 0.090 N/A No cover
401-002.5 9/32 0.280 0.141 0.310

Stock sheathing is readily available. Other sizes have longer lead times depending upon size and quantity.



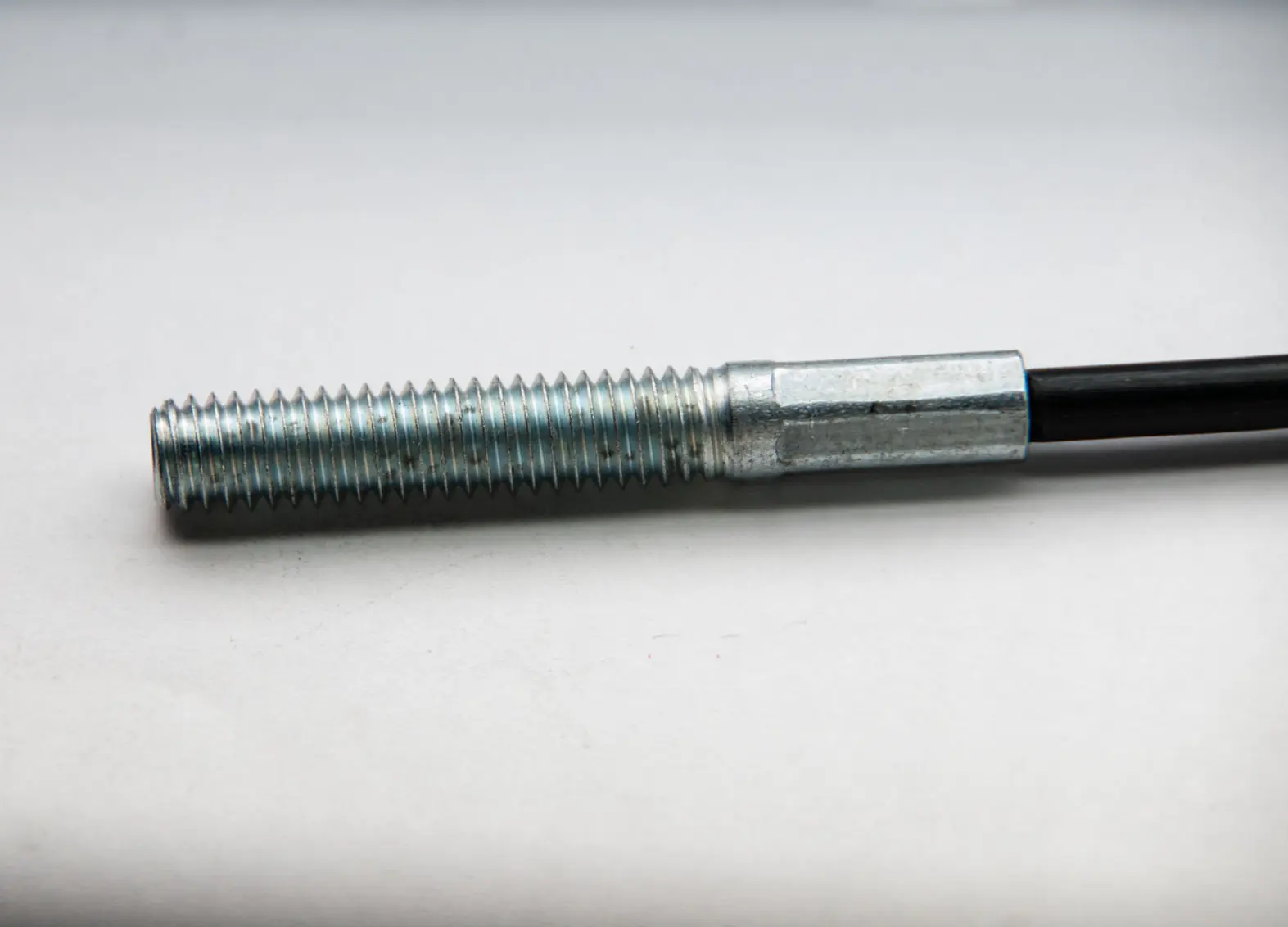

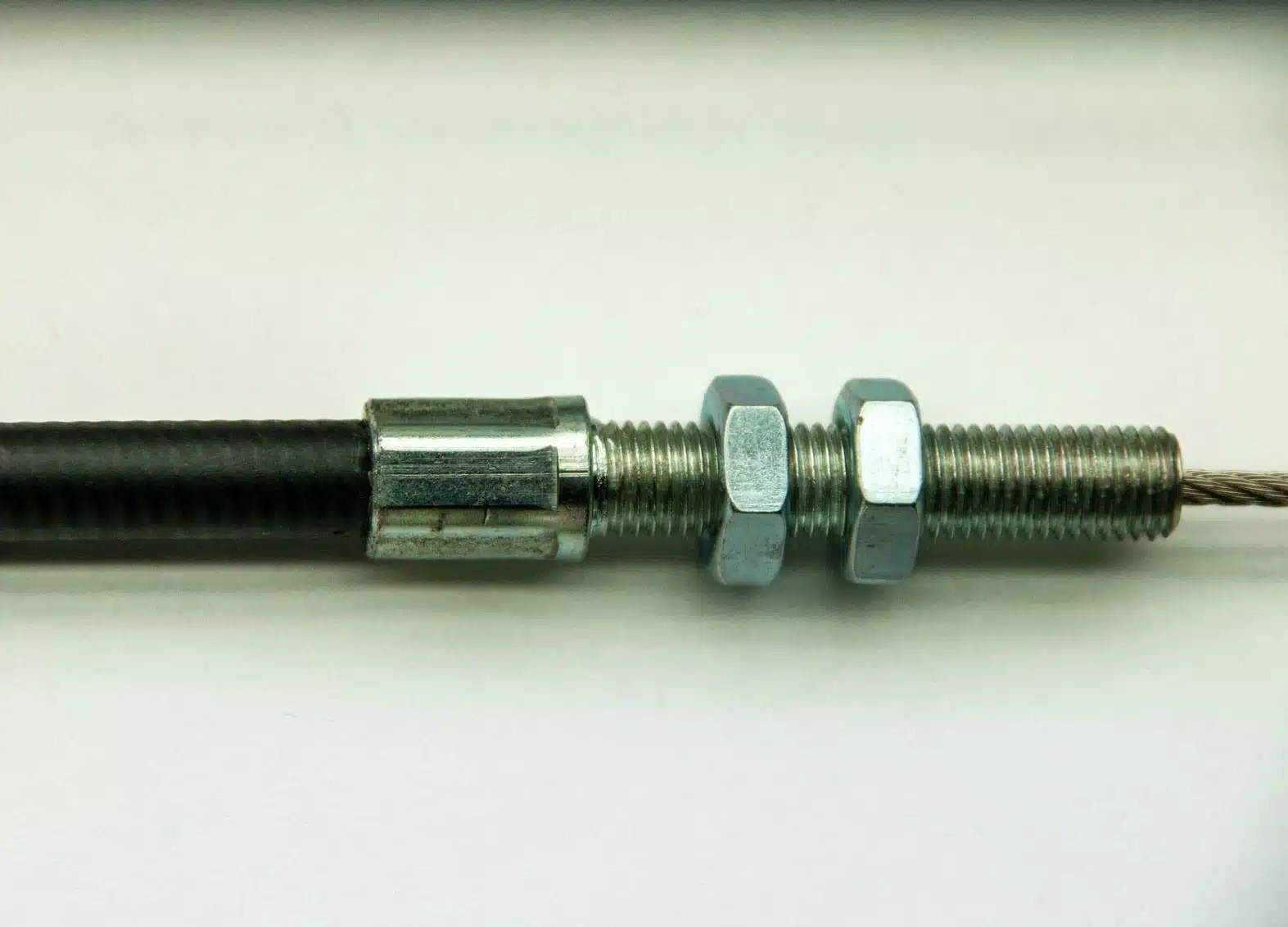

If you require any assistance or have questions about conduit assembly, feel free to call!
