Strap Fork/Strap Eye Fittings

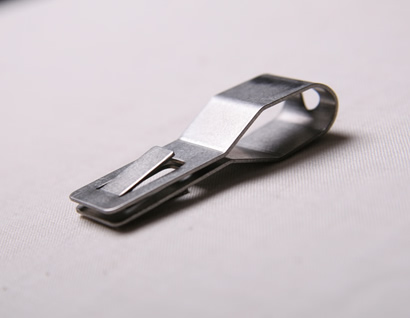

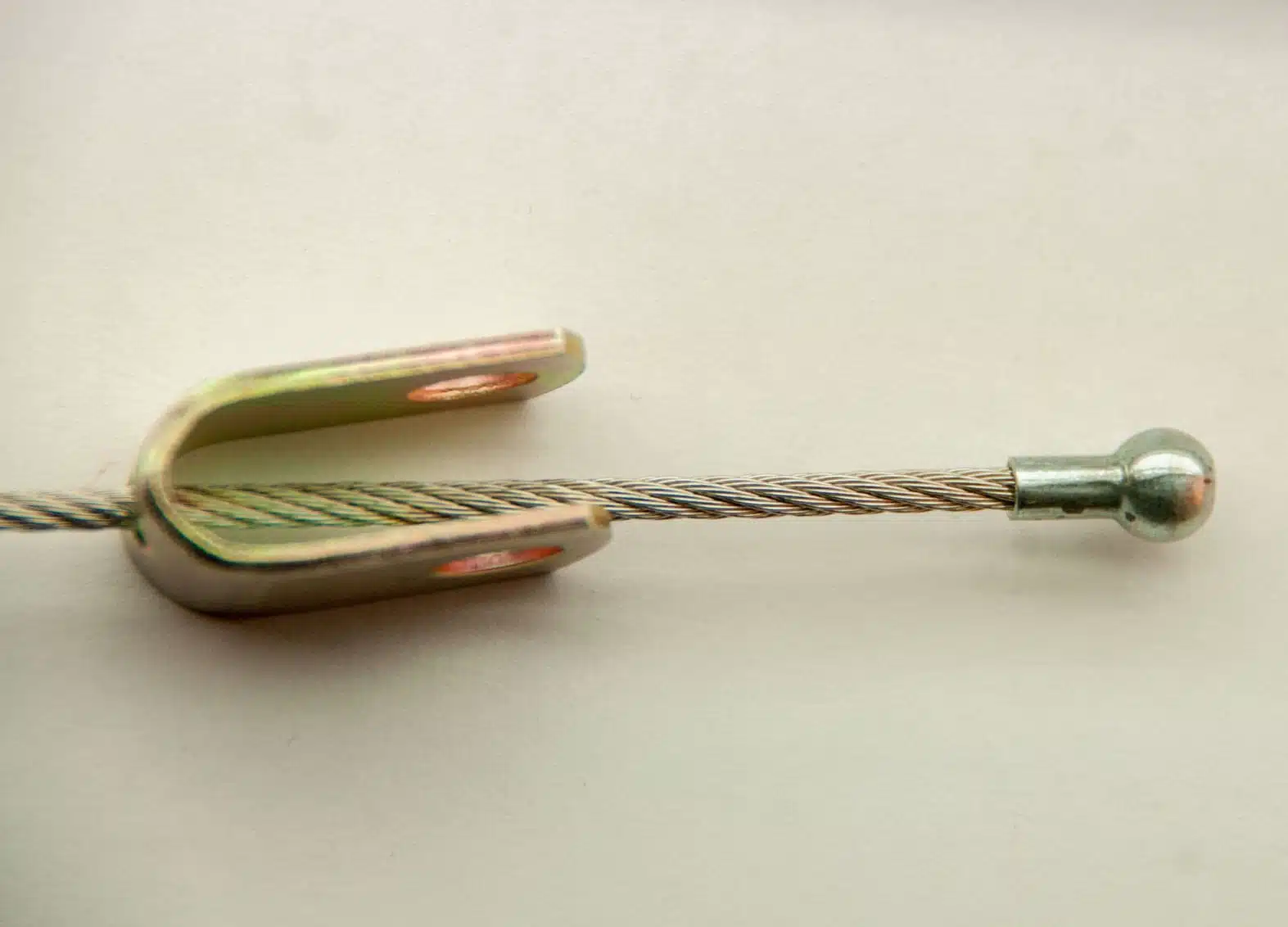

Tyler Madison always keeps a cornucopia of wire strap eyes, swage eye fittings and various materials in stock to ensure our shop stays flexible for the ever-changing needs of our customers. Used with a ball or ball shank end fitting, these fittings allow for cable rotation.
The chart below will help you determine which part number is best suited for your application.

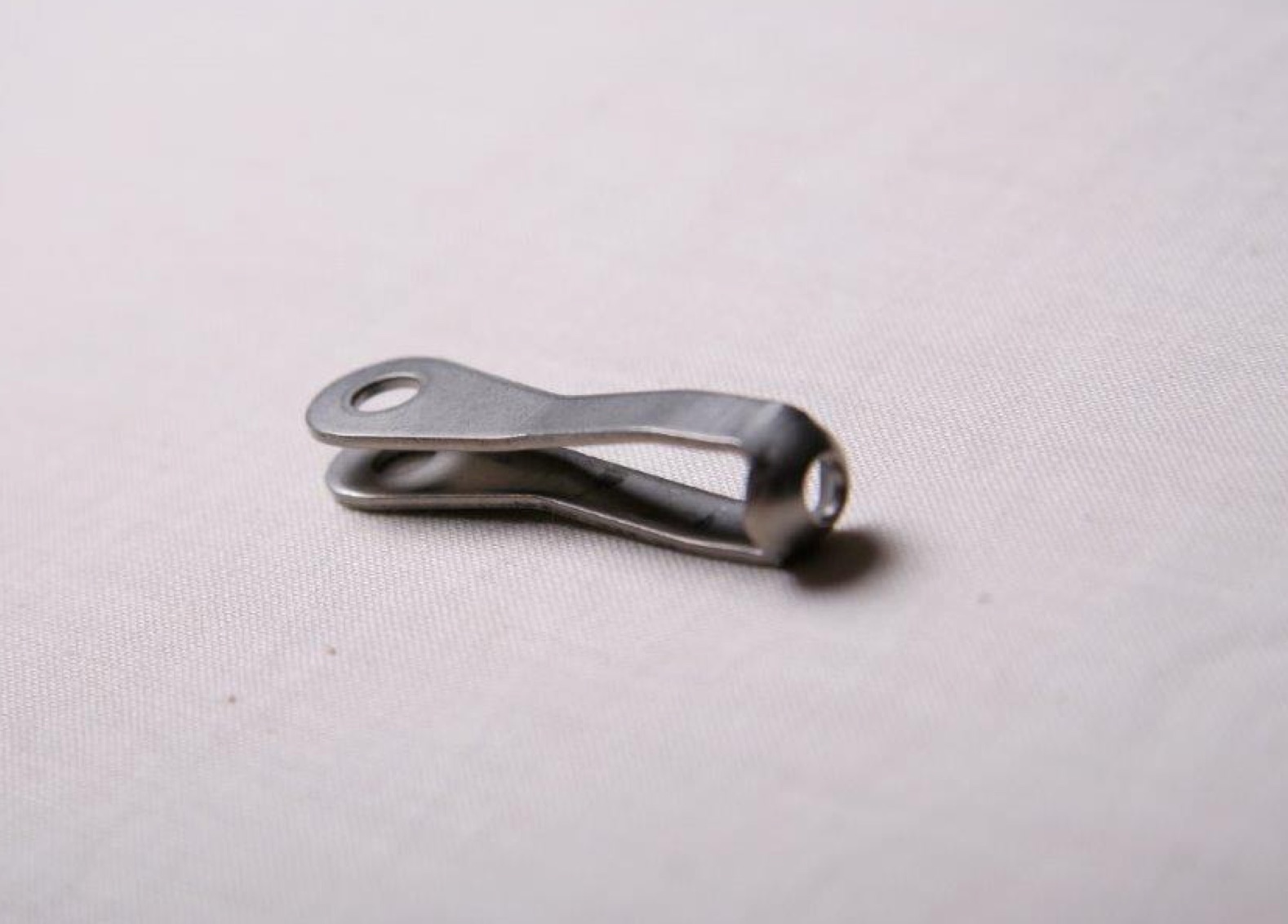

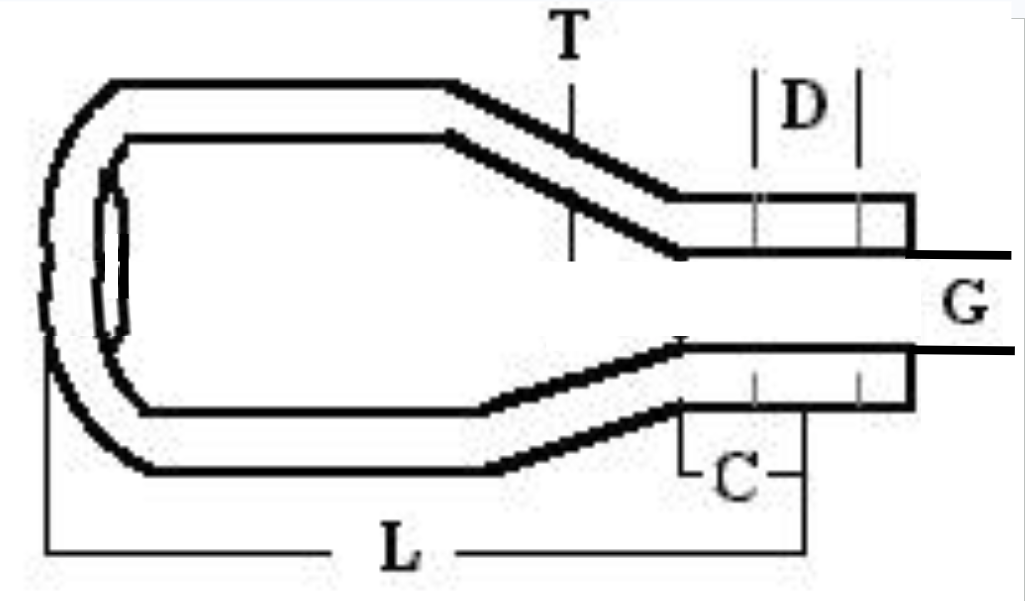

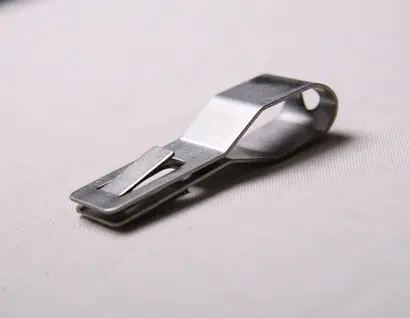

Strap Fork
Strap Fork End Fittings
| Part # | Wire Rope Diameter (in) | Dimension L (in) | Dimension C (in) | Dimension D (in) | Dimension T (in) | Dimension G (in) |
|---|---|---|---|---|---|---|
| 355-550 | 1/16″ | 1-1/16″ | 0.453″ | 0.188″ | 0.042″ | 0.093″ |
| 355-555 | 3/32″ | 1-1/2″ | 0.616″ | 0.188″ | 0.049″ | 0.108″ |
| 355-600 | 1/8″ | 1-5/8″ | 0.638″ | 0.188″ | 0.093″ | 0.195″ |
| 5/32″ | 1-15/16″ | 0.699″ | 0.250″ | 0.096″ | 0.202″ |

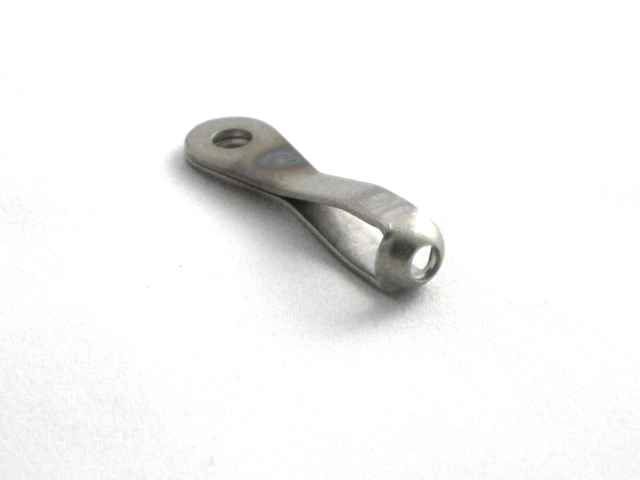

Strap Eye
Strap Eye End Fittings
| Part # | Wire Rope Diameter (in) | Dimension L (in) | Dimension C (in) | Dimension D (in) | Dimension T (in) | Dimension G (in) |
|---|---|---|---|---|---|---|
| 355-606 | 1/16″ | 1-1/16″ | 0.453″ | 0.188″ | 0.042″ | 0.088″ |
| 355-608 | 3/32″ | 1-1/2″ | 0.616″ | 0.188″ | 0.049″ | 0.103″ |
| 1/8″ | 1-5/8″ | 0.638″ | 0.188″ | 0.093″ | 0.190″ | |
| 355-610 | 5/32″ | 1-15/16″ | 0.699″ | 0.250″ | 0.096″ | 0.197″ |
Strap Fork/Strap Eye Fittings
Strap Forks and Strap eyes are the perfect option for pull actuating a device via a pin or bolt attachment, but the attachment point needs to swivel or flex with variable positions. Try to look at swage eye fittings like a more versatile stamped eye.
Strap forks are useful for when you need your device’s actuation to be pulled directly in-between the forks. General purposes include security, attaching, hanging, lifting and many others. If you need actuation to be rigid and completely straight you are going to want to use a fork eye.
Strap eyes are welded together, allowing them to be thinner and fit into smaller spaces.
