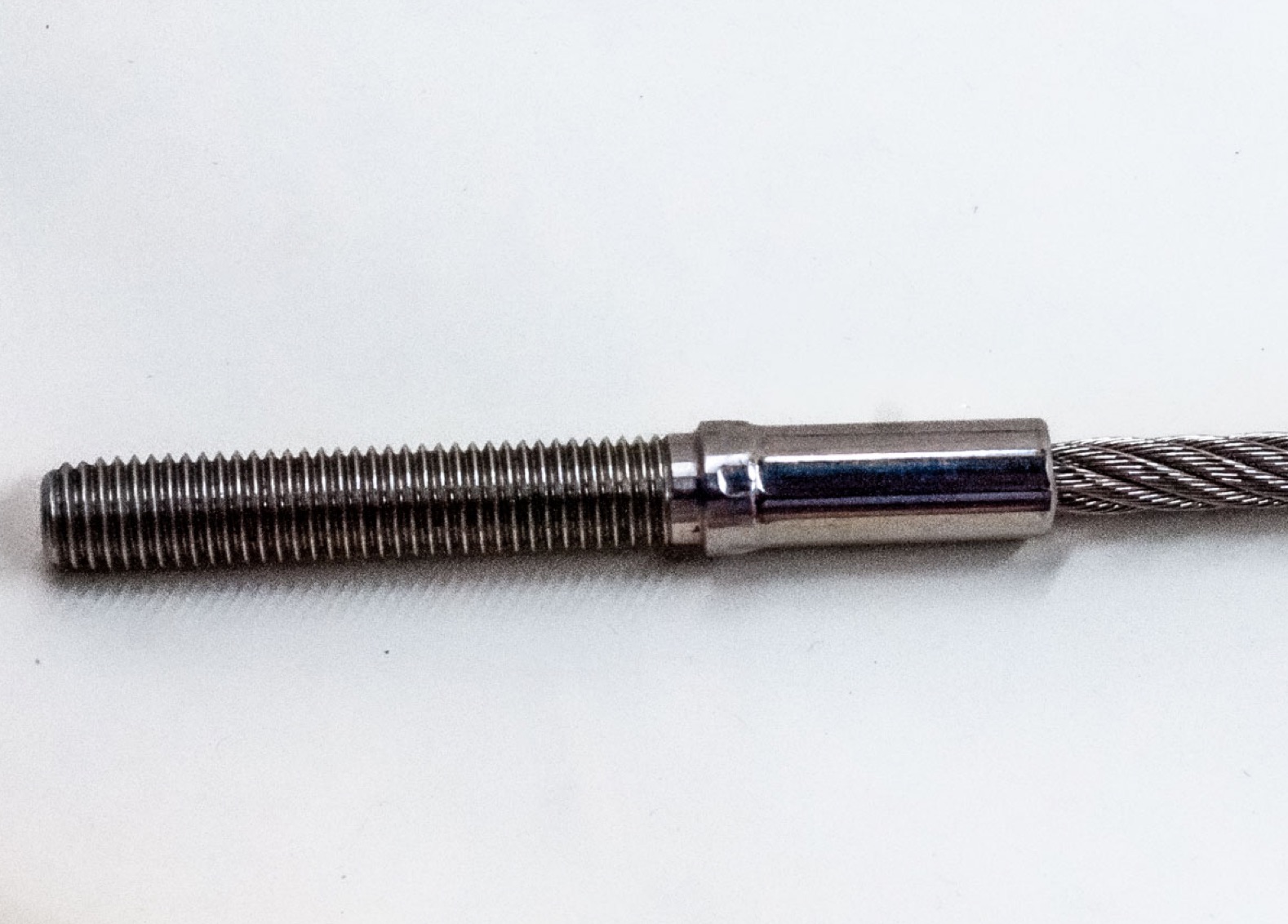

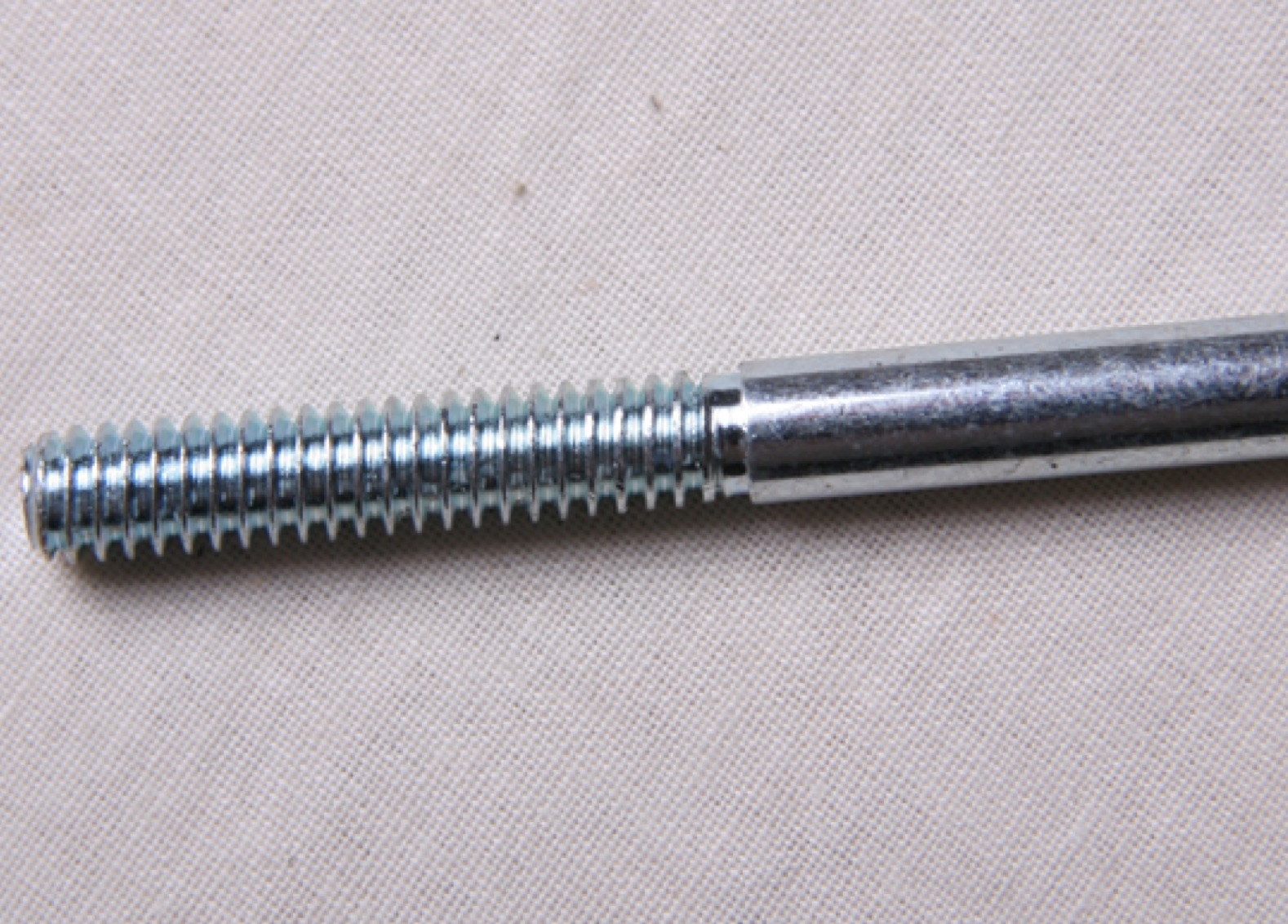

Threaded Stud Fittings

Threaded Stud Spec
Bare Cable Diameter Thread Size Thread Length (A) Overall Length (B)
3/64 in 10-24 1.0 in 1-5/8 in
1/16 in 10-24 1.0 in 1-5/8 in
3/32 in 1/4-20 3/4 in 1-1/2 in
1/8 in 1/4-20 1-1/4 in 2-1/8 in
1/8 in 1/4-28 2-1/4 in 3-1/4 in
1/8 in 5/16-18 1-1/2 in 2-5/16 in
3/16 in 3/8-16 2-1/4 in 3-1/4 in
