Ball End Fittings

Wire rope ball end fittings come in a variety of sizes in order to fit different diameters of cable. The end fitting is swaged on the end of a cable or wire rope, and then the ball can be inserted into a socket that holds it in place. Our ball swage fittings make it easy to attach and detach items to a cable, while also creating a secure swivel point when connected to a socket.

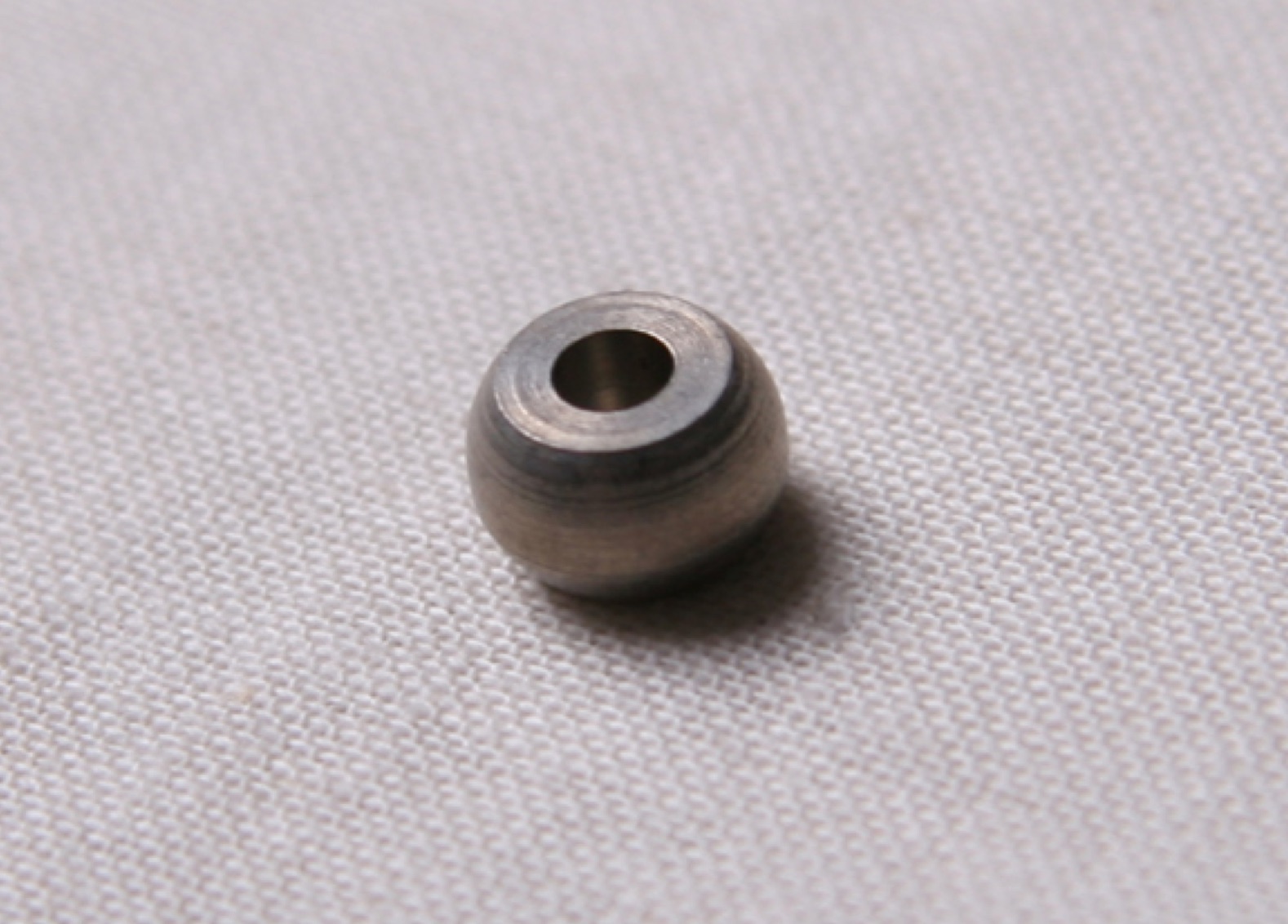

Close-up of ball end fitting.

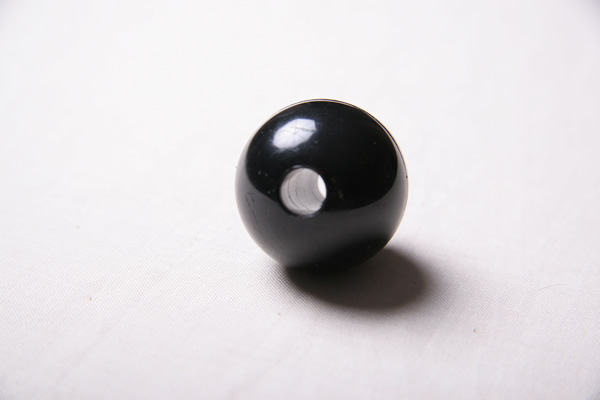

Nylon-Black-Ball-Hardware

The chart below will help you determine which part number is best suited for your application.

ball-end-fitting-diagram_final

Standard Ball End Fittings

Part #Bare Cable Diameter *After Crimp Ball Diameter (in)Material
110-000.13/64″0.190Stainless Steel
110-0021/16″0.190 inStainless Steel
110-0033/32″0.253Stainless Steel
110-003.51/8″0.315Stainless Steel
*Bare Cable Diameter: Bare cable diameter is the outside measurement of wire rope without coating.

Ball End Fittings

At Tyler Madison, we offer a range of wire rope ball end fittings in various sizes and styles from heavy-duty aerospace applications to residential lighting fixtures and everything in between. Our end fittings adhere to the end of a wire cable and can withstand high levels of pulling force.

Pull test strength of balls for size cable 3/32” and smaller is 80% breaking strength of the cable. Balls for cable size 1/8” and larger pull test at 60% of the wire ropes breaking strength. If you are looking for something that holds to 100% breaking strength and has a similar function try using a ball shank end fitting instead.

Still have questions? Our skilled team is here to help answer any questions you may have. Request a quote for your next order of swage ball end fittings or cable today!
