Stop End Fittings

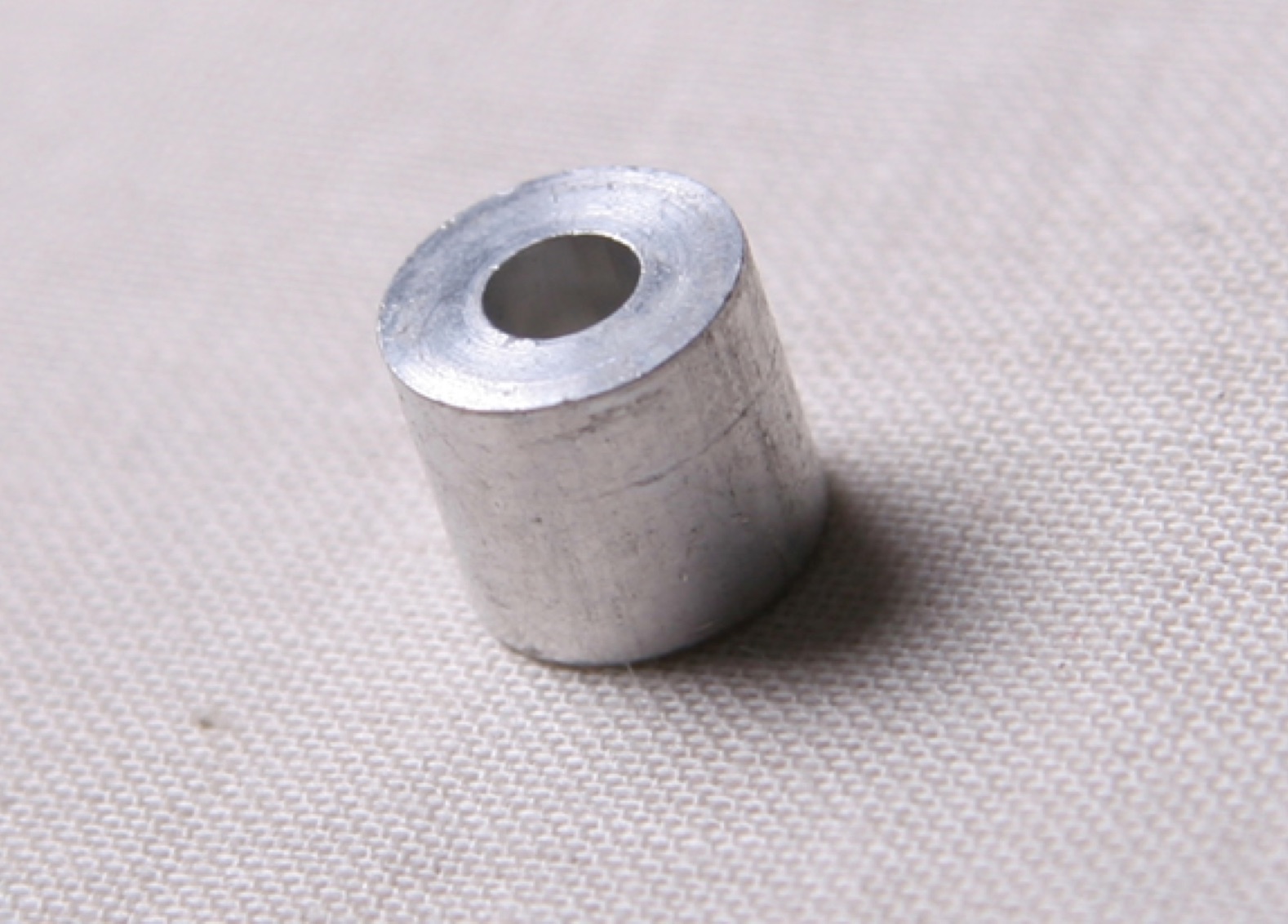

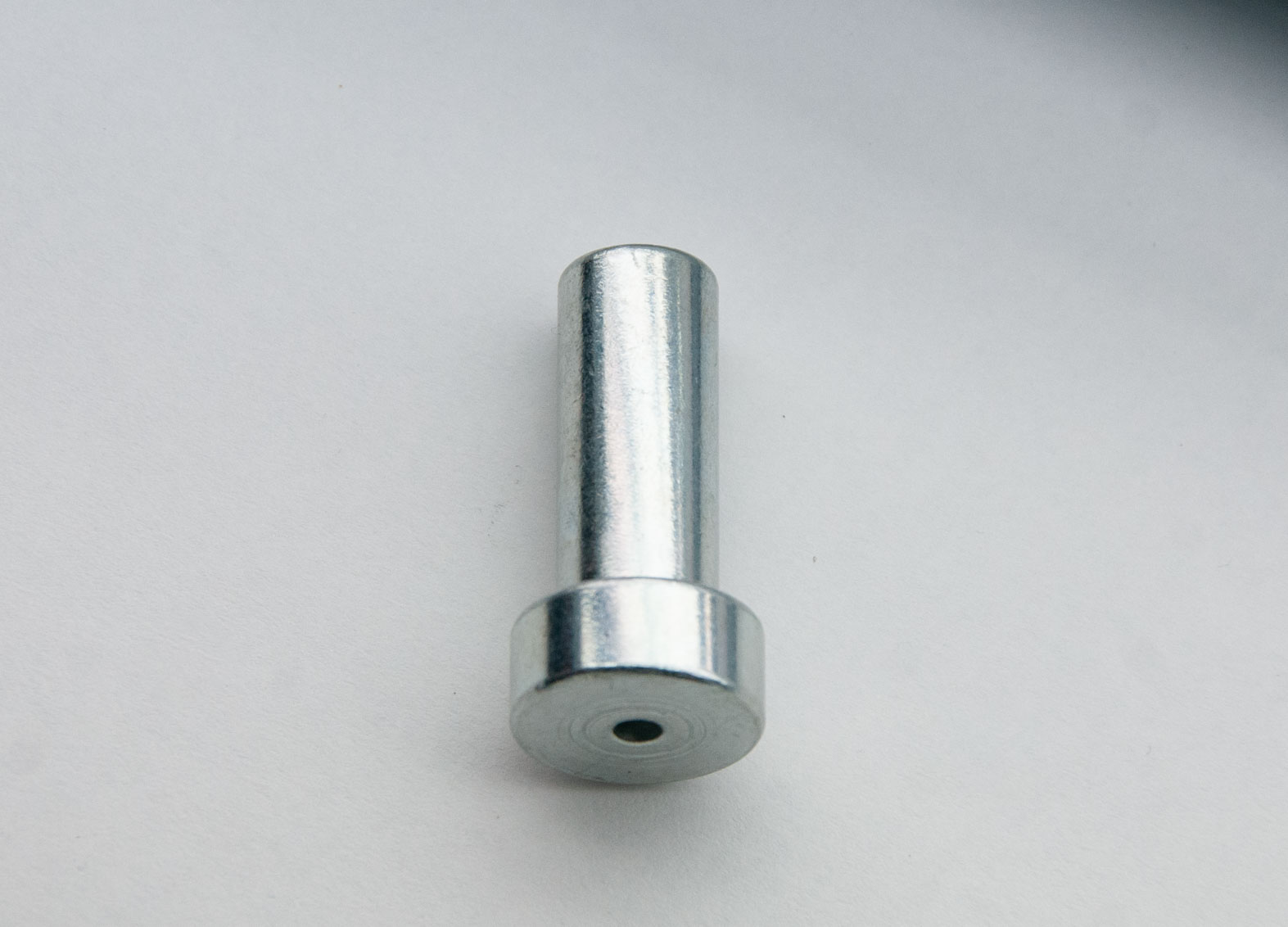

Stop fittings come in various shapes (such as round, oval, or barrel) and materials like steel, aluminum, or stainless steel, selected based on load requirements and environmental conditions. Stops can be swaged on in the middle of an assembly. Stop fittings are often used to create anchor points, maintain tension, or act as stoppers.
The chart below will help you determine which part number is best suited for your application.
Stop End Fittings
| Part # | Bare Cable Diameter (in)* | Material |
|---|---|---|
| 100-005.1 | 1/16″ | Aluminum |
| 100-007 | 3/32″ | Aluminum |
| 100-009 | 1/8″ | Aluminum |
| 100-013 | 5/32″ | Aluminum |
| 100-014 | 3/16″ | Aluminum |
Available Materials: Copper, Aluminum, Carbon Steel, Stainless Steel, Other Material*
*Other non-standard materials can be used however our goal to make you the highest quality wire cable stopper for the lowest cost, we reserve the right to try to steer you away from a material that isn’t recommended for your application (not resistant to corrosion, not strong enough, etc). If you’re interested in using a custom material for swage wire rope fittings, feel free to discuss it with us!
Stop End Fittings

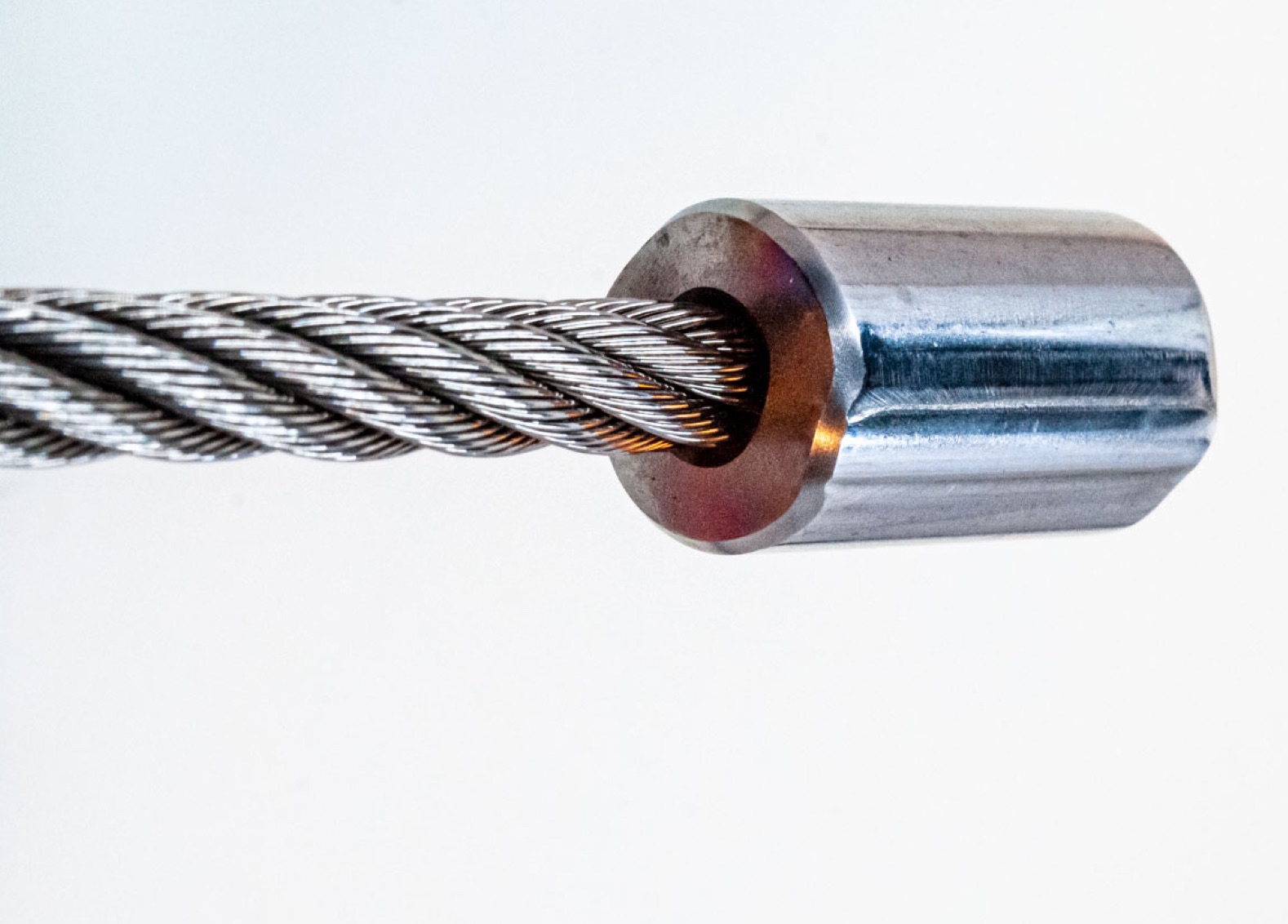

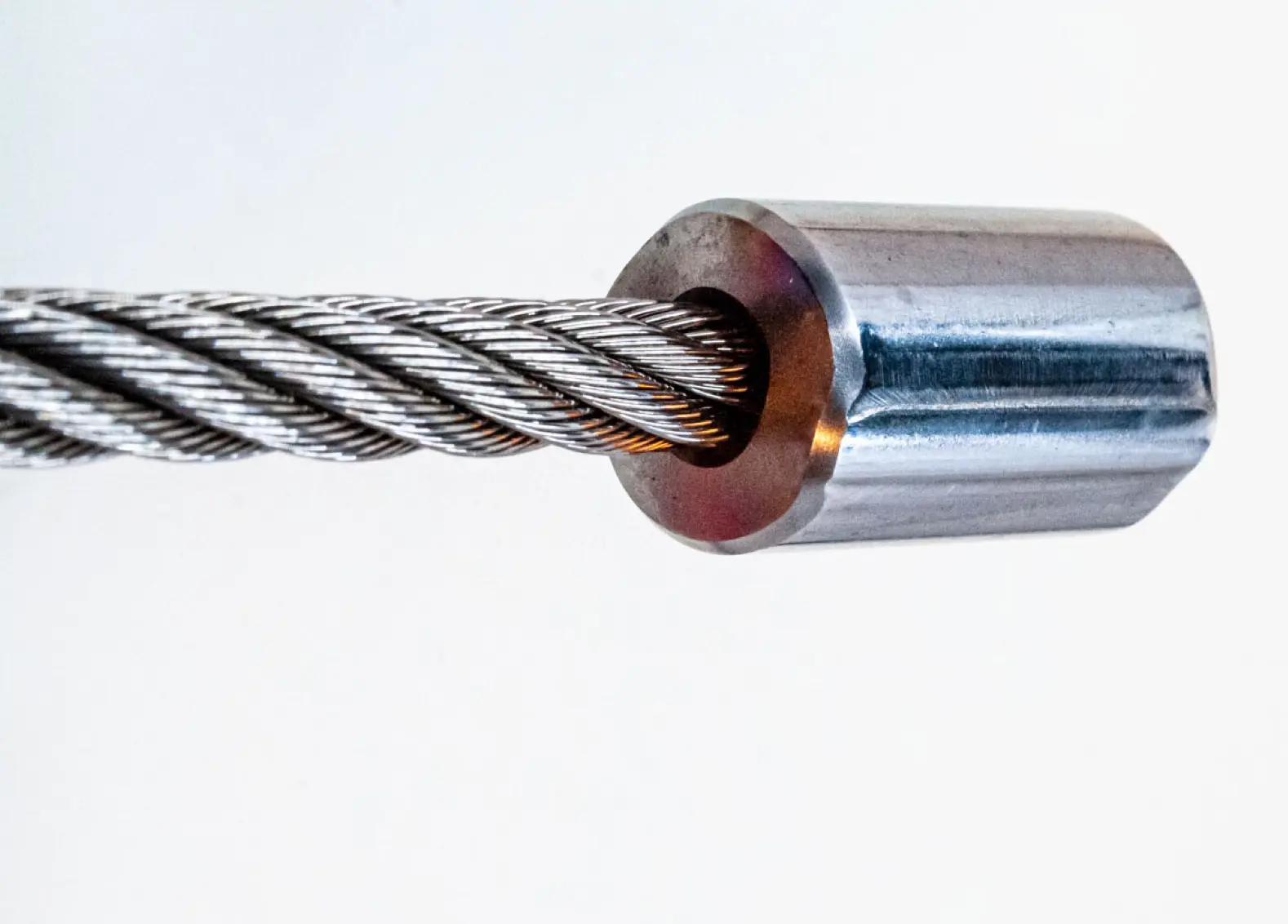

At Tyler Madison, we use stop end fittings whenever the customer expresses a need for a mechanical wire rope cable assembly that has rotational ability. What makes stop fittings unique is that they can be swaged anywhere along the length of an assembly, not just at the end, allowing for greater flexibility in various configurations. Due to their cylindrical shape, these fittings also permit rotation of the wire rope lanyard, which can be beneficial in applications where movement or rotation is required.
We have the capabilities and know-how to create wire rope assemblies and wire rope end fittings for high-stake applications. These include aircraft cable fittings and assemblies, military cables, stainless steel medical cables and push pull control cables. From start to finish, we create your wire rope assemblies using the latest technology and the best quoting practices. To further accommodate your needs, we also offer a series of secondary services.
Flexible & Innovative Solutions
No matter what the application or issue, we are here to help you solve it!
Quality
Tailored cable assemblies and controls designed to meet specific needs and applications.
Competitive Pricing
Consistently reliable product at a cost-effective price.
Fast & Reliable
High standards of craftsmanship ensuring durable and dependable products.
Stop End End Fitting FAQs
How does Tyler Madison adhere wire rope end stops?
- We make a stop end fitting permanent by sliding it onto a set point of the cable and then compressing it via a hydraulic swage machine.
Should I use a stop end fitting on my assembly?
- The only way to know for sure whether or not stop end fittings are right for your application is by giving us a call and detailing your specifications. Our knowledgeable staff members are waiting to discuss your specifications and help you determine the proper end fitting.
Can I get stop end fittings made using a non-standard material?
- Of course! Keep in mind though, that because it’s our goal to make you the highest quality wire cable stopper for the lowest cost, we reserve the right to try to steer you away from a material that isn’t recommended for your application (not resistant to corrosion, not strong enough, etc.). If you’re interested in using a custom material for swage wire rope fittings, feel free to discuss it with us!
