Ball Shank End Fittings
We offer a variety of both standard and custom ball shank end fittings in various sizes and styles. Our skilled team and advanced equipment allow us to create strong and highly customizable products for our customers. Even if a ball shank fitting is just one part of the cable assembly that you need, we can design and engineer a solution that you can depend on.
The chart below will help you determine which part number is best suited for your application.
Ball Shank End Fittings
| Part # | Bare Cable Diameter (in)* | After Crimp Ball Diameter (in) | After Crimp Shoulder Diameter (in) | Material |
|---|---|---|---|---|
| 110-000 | 3/64″ | 0.190 | 0.112 | Stainless Steel |
| 100-001 | 1/16″ | 0.190 | 0.112 | Stainless Steel |
| 110-002 | 3/32″ | 0.253 | 0.143 | Stainless Steel |
| 110-004 | 1/8″ | 0.315 | 0.190 | Stainless Steel |
| 100-011.4 | 5/32″ | 0.379 | 0.222 | Zinc Plated Steel |
| 110-006.5 | 3/16″ | 0.442 | 0.255 | Zinc Plated Steel |
Ball Shank End Fittings

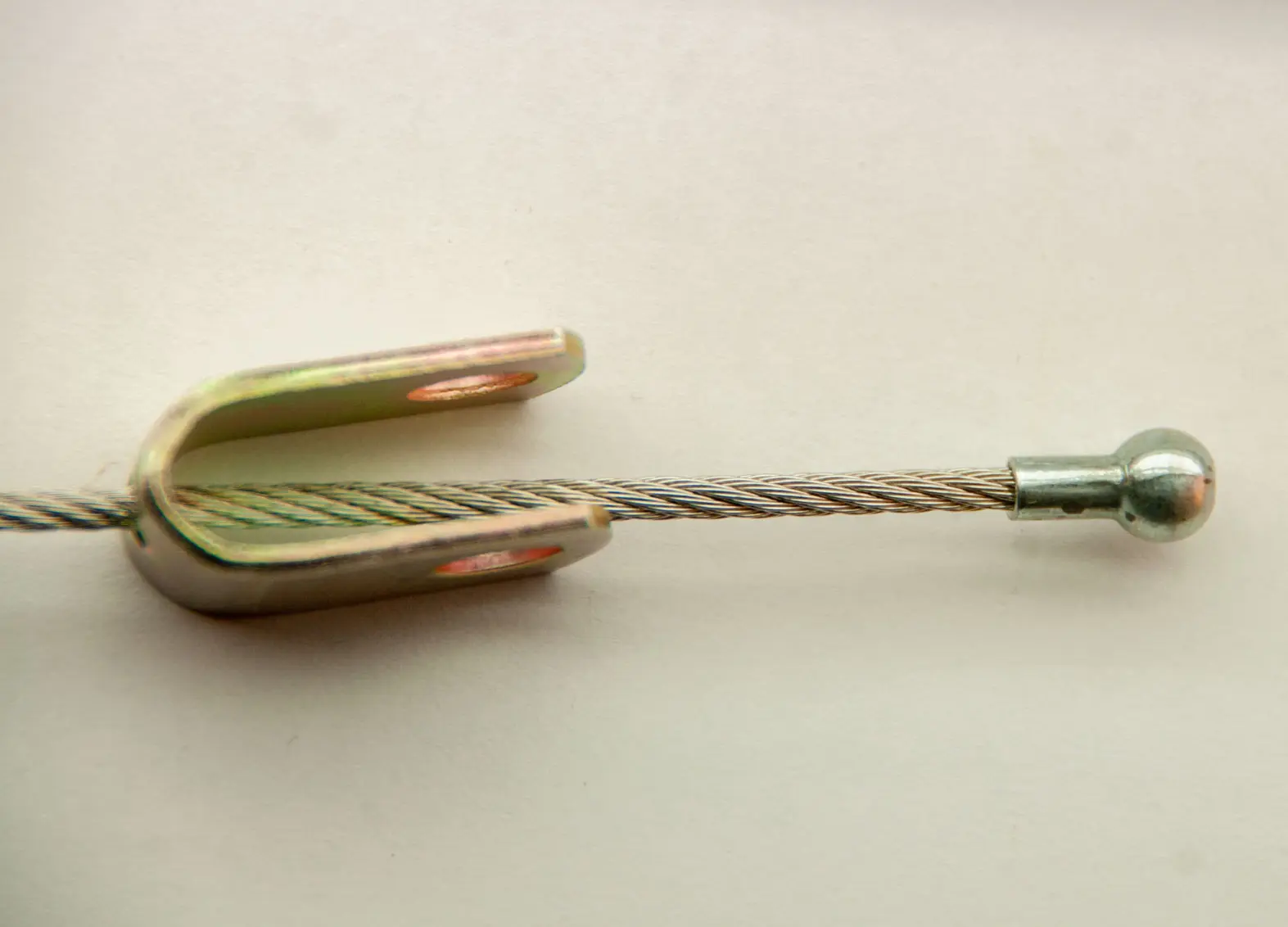

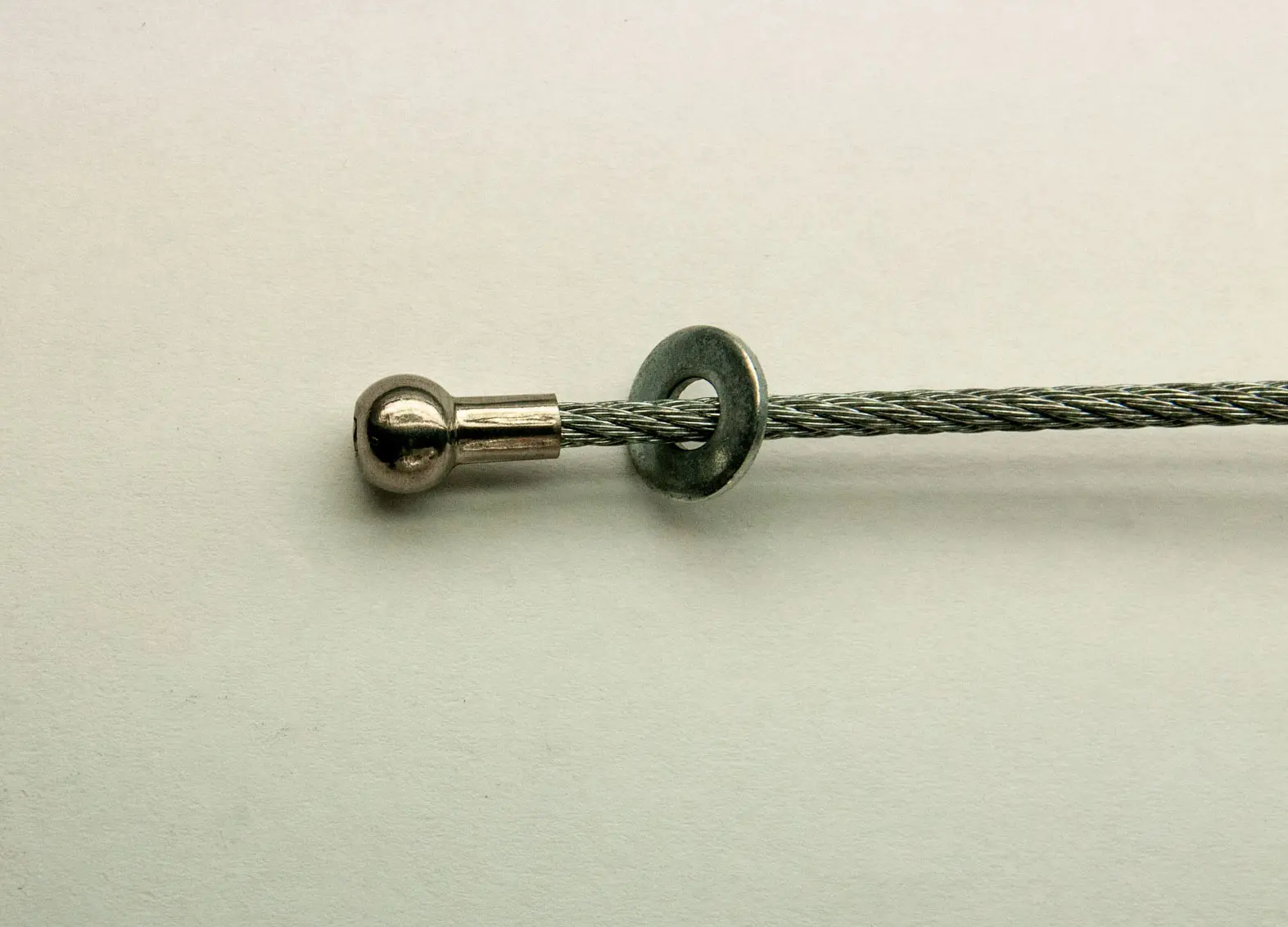

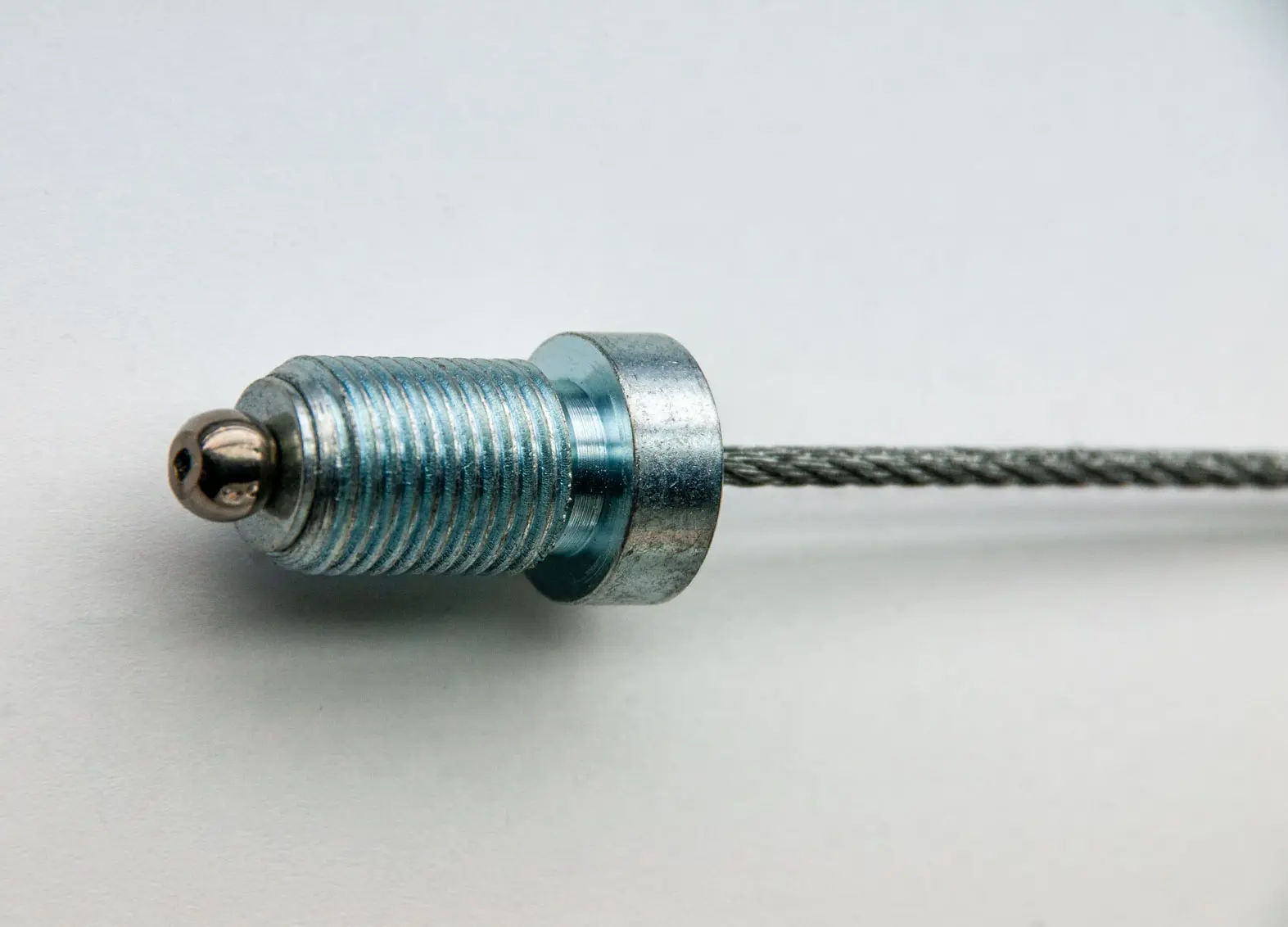

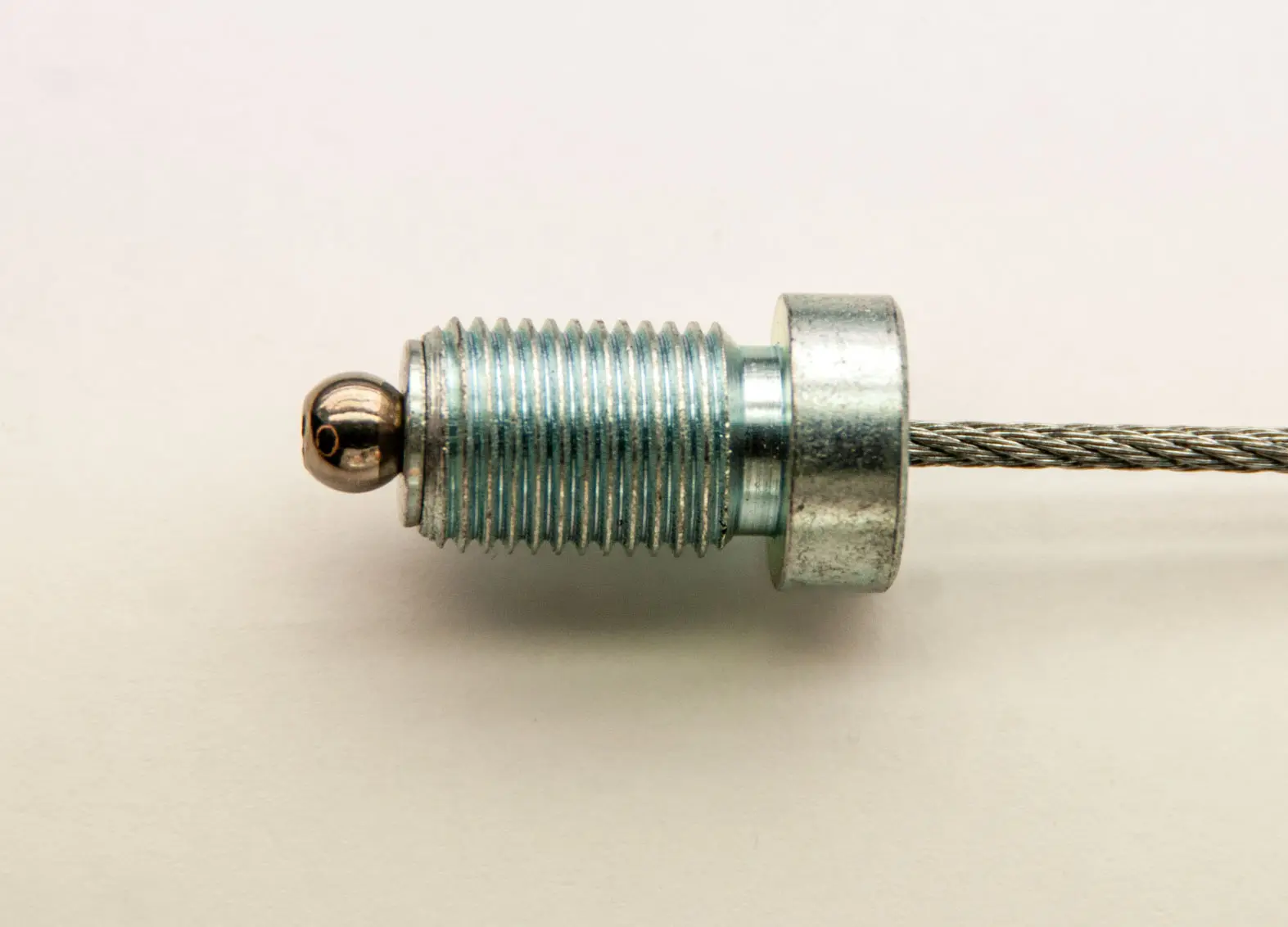

Similar to a ball end fitting, a ball shank fitting is sphere-shaped, and when crimped on to the end of a wire rope or cable, can fit into a socket. Most ball shanks are made using stainless steel for added durability and have a hole that goes all the way through the end fitting. This along with the added shank part to the ball allows the ball shank to bond well enough to hold to the cables breaking strength. Ball end fittings on the other hand can only hold to 60-80% of cable breaking forces.
Whether you are looking just for ball shank fittings, aircraft cable crimps, steel cable crimp ends or complete cable assemblies, Tyler Madison is the place to turn. Our years of expertise on stainless steel wire rope fittings and our many quality products make us a manufacturer that you can trust.
